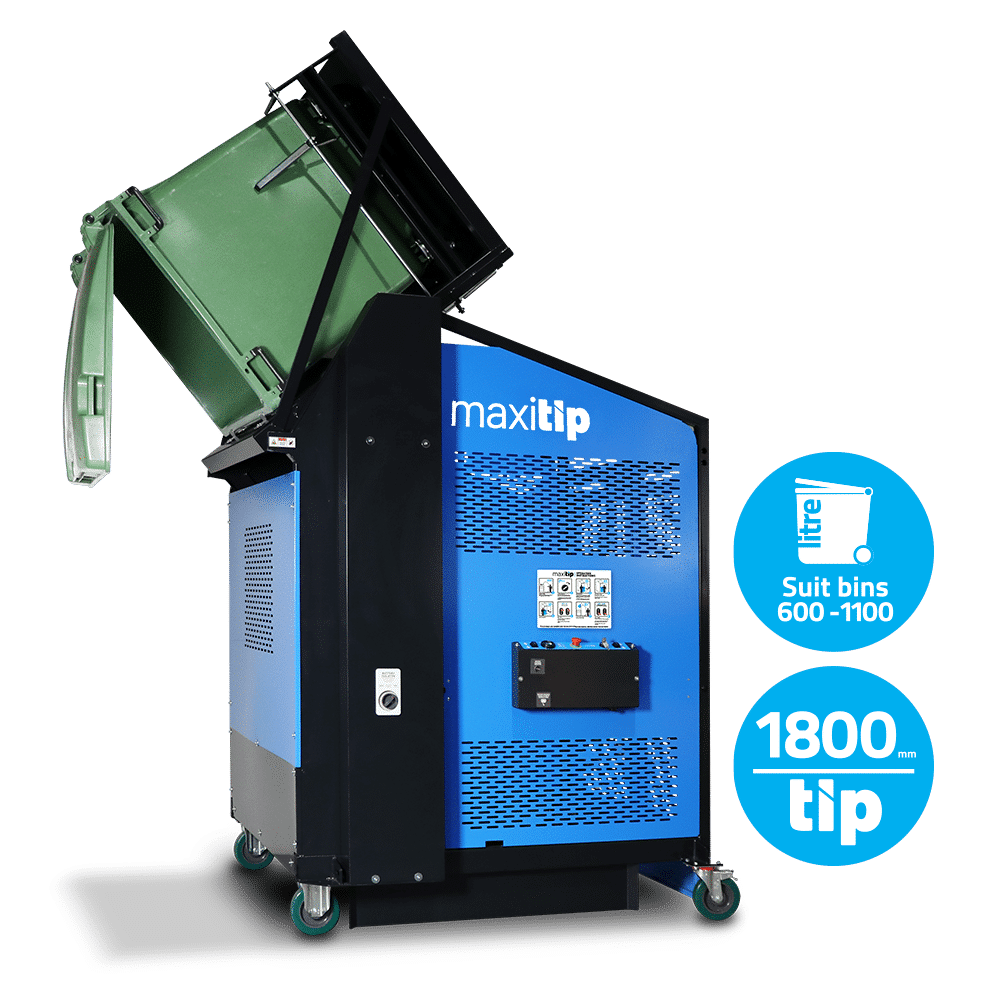

The all new and innovative Maxitip bin tipper from Sitecraft empties large capacity waste bins easily and effortlessly with the simple push of a button. The Maxitip can empty 80,120,240, 660 and 1100 litre bins quickly and efficiently.
Bins are raised vertically, then gently rolled forward to empty the contents of the bin. This design requires less space and is safer and more efficient than tippers that rotate the bin around a fixed pivot point.
The electro-hydraulic tipping mechanism allows a single operator to quickly and effortlessly empty a wide range of waste and rubbish bins. The Maxitip is simple to use, the waste bin is wheeled onto the tipping cradle and the safety door closed to allow operation. Push-button control allows the operator to raise, tip and lower bin back to ground level.
The Maxitip bin tipper/lifter is available in battery, single-phase or three-phase operation. For maximum manoeuvrability, the Maxitip bin lifter has 200mm diameter, resilient rubber wheels with ball bearings for ease of moving. Fork tyne pockets allow safe and easy movement by forklift.
| Product Code | Product Name | Capacity (kg) | Castor Size (mm) | Height (mm) | Length (mm) | Power Source | Tipping Height (mm) | Price |
|---|---|---|---|---|---|---|---|---|
| 69121052 | 1800mm - Battery Powered | 600 | 200 | 2390 | 1860 | Battery Powered | 1800 | |
| 69121052.1 | 1800mm - Single Phase Powered | 600 | 200 | 2390 | 1860 | Single phase | 1800 | |
| 69121052.3 | 3 Phase Powered | 600 | 200 | 2390 | 1860 | 3 Phase Powered | 1800 |
Power Options
The Maxitip is available with either battery-electric, single phase or 3 phase power sources, battery electric operation is the most popular option due to its flexibility and versatility. The battery-electric model can be fitted with solar power charging as an option.
| Product Code | 69121052 | 69121052.1 | 69121052.3 |
| Product Name | 1800mm – Battery Powered | 1800mm – Single Phase Powered | 3 Phase Powered |
| Capacity (kg) | 600 | 600 | 600 |
| Castor Size (mm) | 200 | 200 | 200 |
| Height (mm) | 2390 | 2390 | 2390 |
| Length (mm) | 1860 | 1860 | 1860 |
| Power Source | Battery Powered | Single phase | 3 Phase Powered |
| Tipping Height (mm) | 1800 | 1800 | 1800 |
