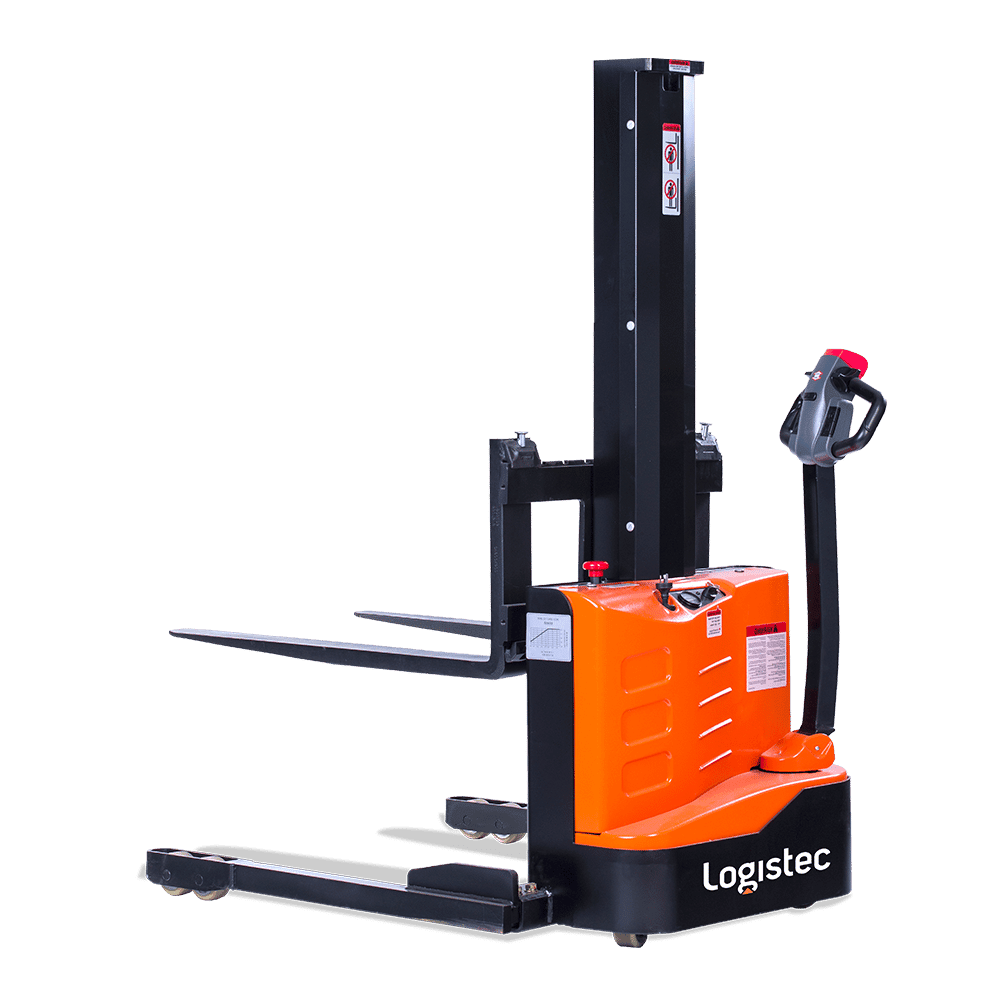

Logistec Electric Straddle Stacker | 1200kg | 1520mm Lift Height

Code: 3381108

Logistec 1200/1520 Electric Straddle Stacker are a powered lift and drive pallet mover with a very compact design.  This plus a minimal turning circle makes them an ideal choice for compact areas.  Combined with the single mast design and offset operator position, they have excellent operator view. The built in charger eliminates bulky and unnecessary stand alone units adding the versatility to charge from any standard power outlet via the retractable charging cord.  Ergonomic handle mounted up/down switches, forward / reverse controller system, emergency stop button and warning horn for efficient operation and user safety.  The low battery voltage protection system extends the maintenance free battery  working hours and serviceable life.

Logistec 1520/1200 Electric Straddle Stacker can be supplied with our innovative Infra-red Pallet Levelling System which constantly monitors the top layer of any product on the forks, automatically raising or lowering the forks to maintain an ergonomic working height.  The height sensor works equally well for cartons, paper, wood, sacks and bottles of any size, shape or weight

Product Features

Curtis Electronic Control
On Board Charger
Electromagnetic Brake
Handle Mounted Controls
Key On/Off Switch
Battery Meter & Hour Meter
Optional: Infra-Red Height Sensor

Specifications

Product Code 3381108
Product Name Logistec Electric Straddle Stacker
Fork Length (mm) 1070
Lift Height (mm) 1520
Load Capacity (kg) 1200
Mast Height (mm) 1940
Width (mm) Overall, Adjustable 1135-1435

Specifications

Product Code 3381108
Product Name Logistec Electric Straddle Stacker
Fork Length (mm) 1070
Lift Height (mm) 1520
Load Capacity (kg) 1200
Mast Height (mm) 1940
Width (mm) Overall, Adjustable 1135-1435

Need Help With Selecting The Right Product ?
Contact a Sitecraft Product Specialist Call: 1300 363 152

Request a Quote
