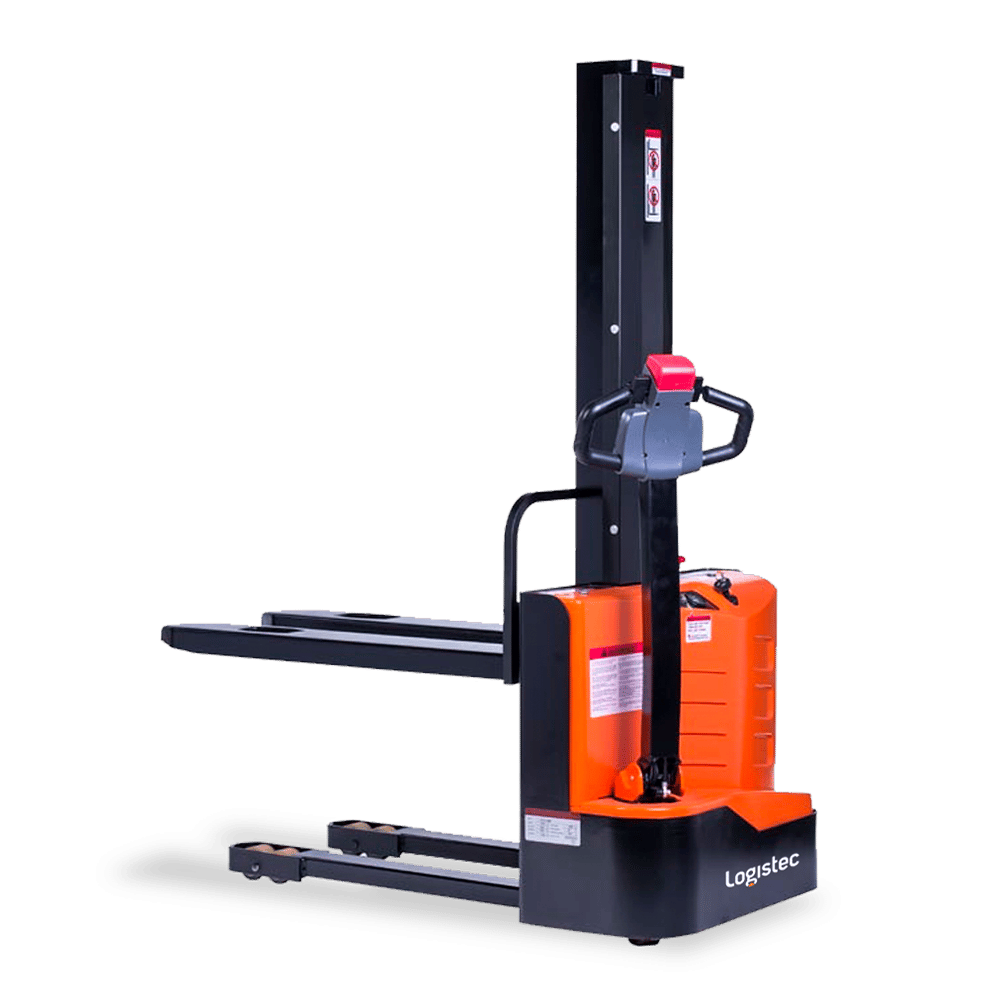

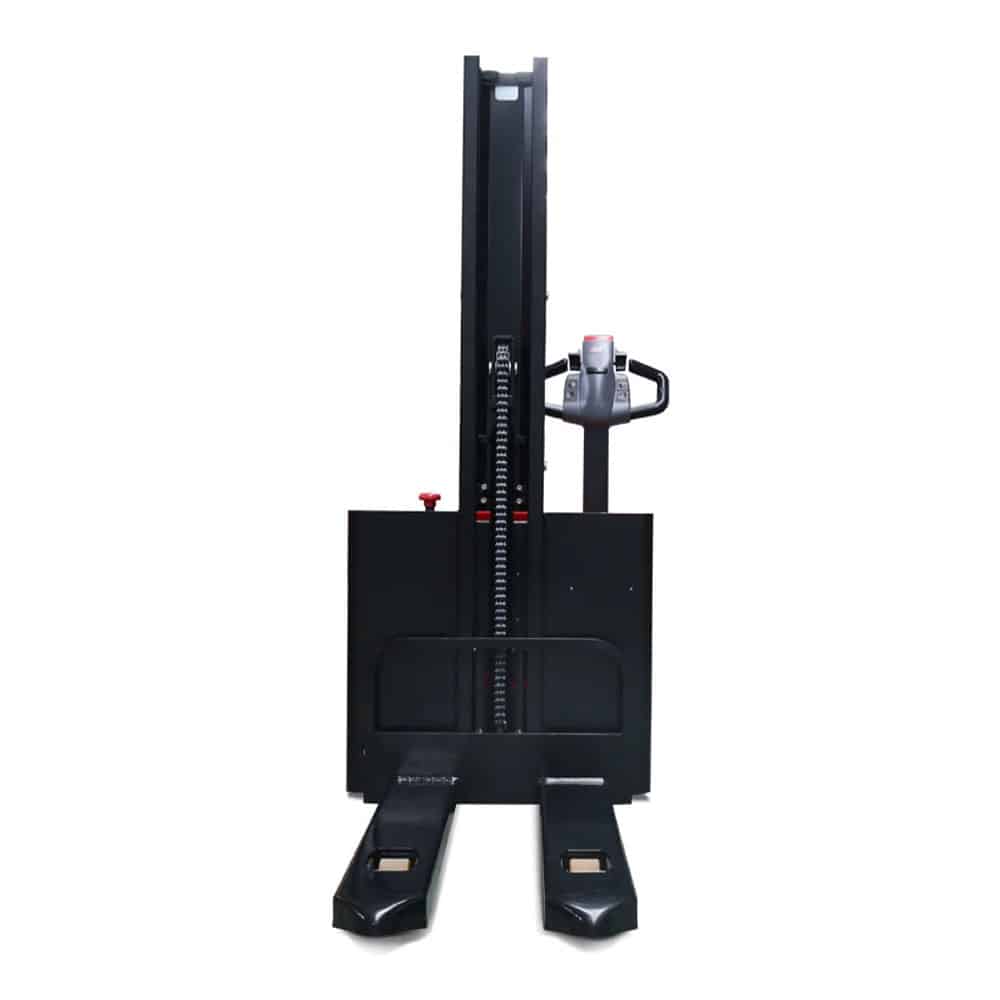

Logistec Electric Non-Straddle Stacker | 1000kg | 1520mm Lift Height

Code: 3381047

Logistec 1000/1520 Electric Non-Straddle Stacker is a powered lift and drive pallet mover with a very compact design. This plus a minimal turning circle makes them an ideal choice for compact areas. Combined with the single mast design and offset operator position, they have excellent operator view. The built in charger eliminates bulky and unnecessary stand alone units adding the versatility to charge from any standard power outlet via the retractable charging cord. Ergonomic handle mounted up/down switches, forward / reverse controller system, emergency stop button and warning horn for efficient operation and user safety. The low battery voltage protection system extends the maintenance free battery working hours and serviceable life.

Load Capacity: 1000kg
Lift Height 1520mm
Overall Height: 1940mm
Overall Length: 1615mm
Overall Width: 800mm
Out Size Fork Width: 550mm
Fork Height Lowered: 85mm
Fork Size: 60 / 170 / 1150mm
Unit Weight 462kg inc battery

Product Features

Curtis Electronic Control
On Board Charger 10amp 240V
Electromagnetic Brake
Handle Mounted Controls
Key On/Off Switch
Battery Meter & Hour Meter
2 x 12V / 82 AH AGM Battery
Service Brake Electromagnetic

Specifications

Product Code 3381047
Product Name Logistec Electric Non-Straddle Stacker
Fork Length (mm) 1150
Lift Height (mm) 1520
Load Capacity (kg) 1000
Mast Height (mm) 1940
Width (mm) Overall, Fixed 800

Specifications

Product Code 3381047
Product Name Logistec Electric Non-Straddle Stacker
Fork Length (mm) 1150
Lift Height (mm) 1520
Load Capacity (kg) 1000
Mast Height (mm) 1940
Width (mm) Overall, Fixed 800
