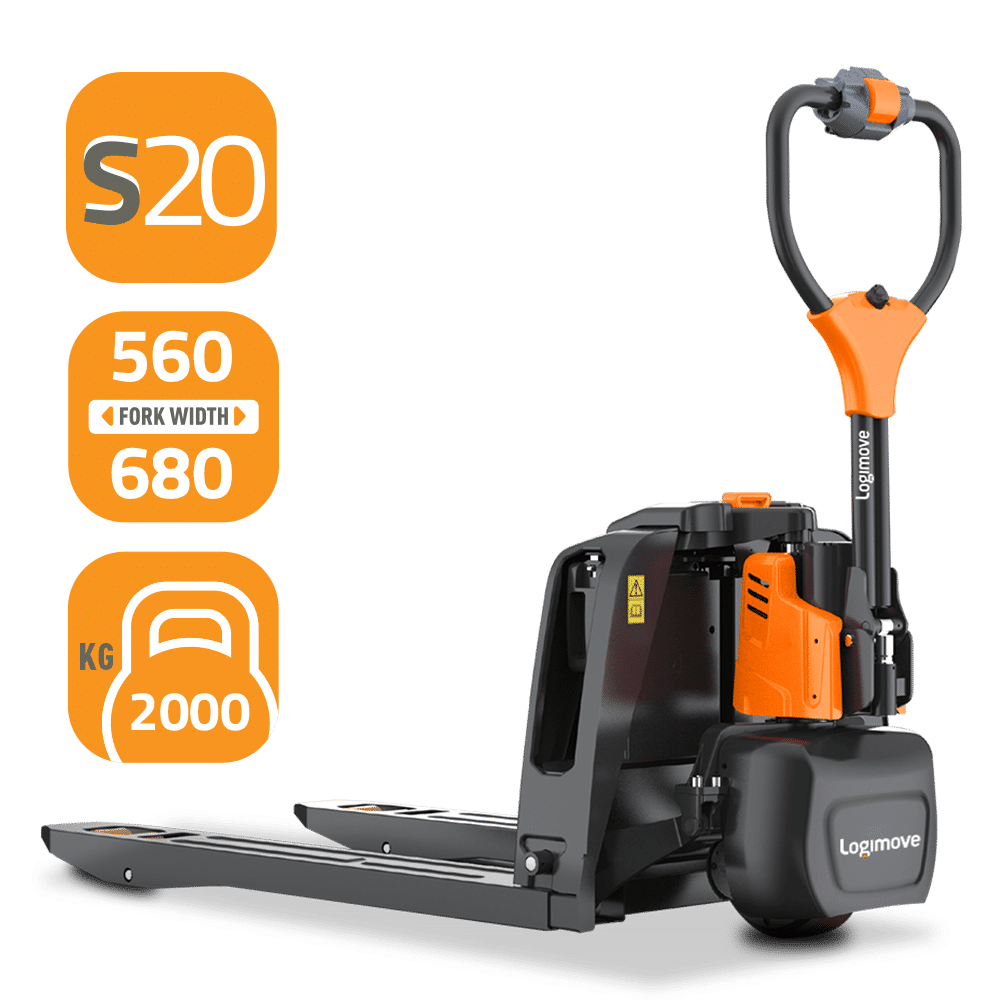

Logimove S20 Electric Pallet Jack | 2000kg | 560 / 685 Fork width Options

Code: 3381386_M

Logimove S20 is the most powerful pallet jack in the S series as a result of its upgraded 48V electric system. The stronger 48V power system makes it the workhorse for both light to heavy-duty applications in the retail trade, in production areas or in warehouses. This pallet truck achieves a top load capacity of 2.0 tonnes. It is powered by two plug-in & out Li-ion batteries which offer maximum flexibility thanks to opportunity charging and zero maintenance. The flip cover also provides waterproof protection for the batteries.

Fully electric operation, with electric lift and forward/backwards drive
Electromagnetic braking system for added safety
Available in two tine widths, 560mm and 685mm
Min Fork Height: 85mm
Max Fork Height: 105mm
Max Gradient: 8% (fully laden)
Max Gradient: 16% (unladen)
Turning Radius: 1360mm

$3,792.80 (Incl. GST) (ex gst)

$3,792.80 (Incl. GST)
$3,792.80 (Incl. GST)
Product Code Product Name Capacity (kg) Dimensions (mm) Fork Length (mm) Power Source Speed (kph) Capacity Price Quantity Calculate Shipping
3381387 S20 - 560mm (w) 2000 560 (w) x 1550 (l)  1150  2x 24v Li-ion Batteries (48v System) 4.5 (unladen)  2000
In stock: Dispatached same business day if ordered by 2pm
$3,792.80 (Incl. GST)
3381386 S20 - 685mm (w) 2000 685 (w) x 1550 (l)  1150  2x 24v Li-ion Batteries (48v System) 4.5 (unladen)  2000
In stock: Dispatached same business day if ordered by 2pm
$3,792.80 (Incl. GST)
Shipping
TNT Road Express $0

*Extra shipping charge may apply for hand or tailgate unloads.

Logimove S20 Electric Pallet Jack Battery Features

Supplied with 2 Batteries
Real Life Working Run Time (2 x Batteries): 9 Hours
Battery Capacity : 2x 24v Li-ion Batteries (48v System)
Battery Weight: 10kg (Additional Battery Model: 3381357)
Charger: 2x External 24V/4A
Drive Motor: 0.9kW

Specifications

Product Code 3381387 3381386
Product Name S20 – 560mm (w) S20 – 685mm (w)
Capacity (kg) 2000 2000
Dimensions (mm) 560 (w) x 1550 (l) 685 (w) x 1550 (l)
Fork Length (mm) 1150 1150
Power Source 2x 24v Li-ion Batteries (48v System) 2x 24v Li-ion Batteries (48v System)
Speed (kph) 4.5 (unladen) 4.5 (unladen)

Specifications

Product Code 3381387 3381386
Product Name S20 – 560mm (w) S20 – 685mm (w)
Capacity (kg) 2000 2000
Dimensions (mm) 560 (w) x 1550 (l) 685 (w) x 1550 (l)
Fork Length (mm) 1150 1150
Power Source 2x 24v Li-ion Batteries (48v System) 2x 24v Li-ion Batteries (48v System)
Speed (kph) 4.5 (unladen) 4.5 (unladen)
