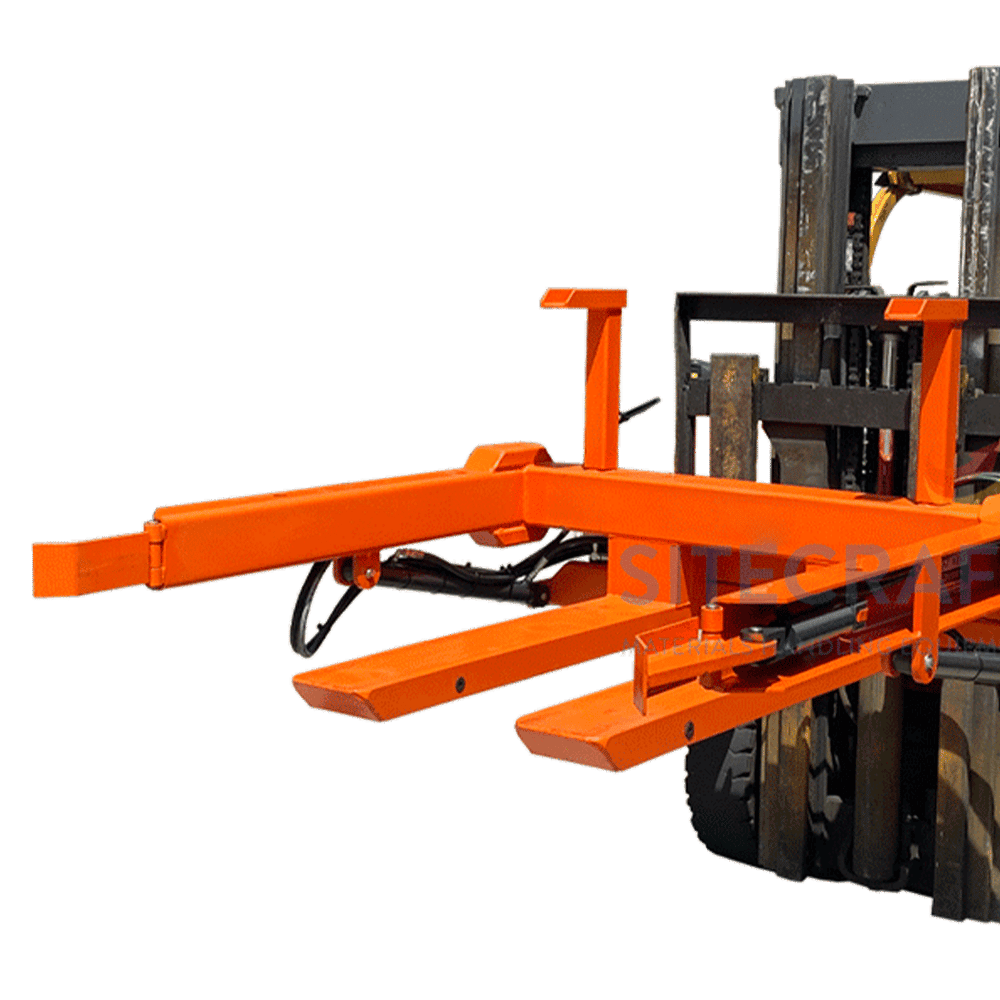

FBT-SH Hydraulic Forward Bin Tipper

Code: 3001264

The type FBT-SH Forward Bin Tipper is ideal for handling and emptying bins in agricultural and manufacturing industries.  This Forklift slip-on attachment requires only a single hydraulic function.  A purpose built hydraulic sequencing valve eliminates the potential to drop the bin (rotation will not commence until the bin is correctly restrained), while the gentle action of the clamp arms prevents damage to the bins.  The standard unit will suit bins up to 1200mm square, with a height range of 675 to 925mm.

Safe Working Load (kg): 1000
Load centre (mm): 880
Unit weight (kg): 290
Fork Pocket Size (mm): 155 x 55
Fork Pocket Centres (mm): 540

Specifications

Product Code 3001264
Product Name FBT-SH Hydraulic Forward Bin Tipper

Specifications

Product Code 3001264
Product Name FBT-SH Hydraulic Forward Bin Tipper

Need Help With Selecting The Right Product ?
Contact a Sitecraft Product Specialist Call: 1300 363 152

Request a Quote
