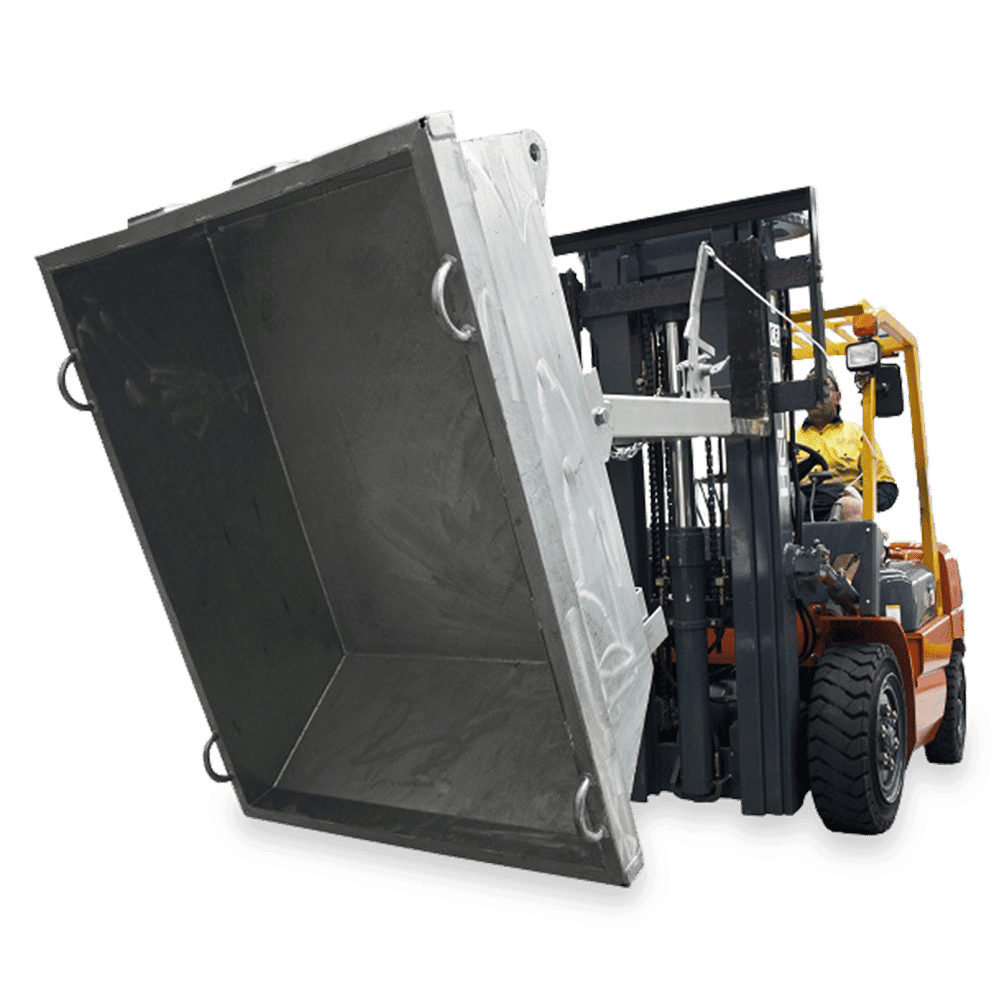

The tipping action of a WFL Tipping Bin is operated by a release mechanism that is activated by the forklift operator pulling a pull cord from the driver’s seat. A shock absorber prevents impact forces being transmitted to the forklift during emptying. WFL bins are manufactured from 3mm plate and features reinforced edging, crane lifting and upending lugs, a removable drain plug and a galvanised finish. An optional wheel kit is available and an optional lid.
| Product Code | Product Name | External Dimensions (mm) | Fork Pocket Centre (mm) | Net Weight (kg) | Price |
|---|---|---|---|---|---|
| 3001480 | WFL Forklift Tipping Bin 0.35cu/m | 1807L x 740W x 555H (excl. lugs) | 310 | 140 | |
| 3001481 | WFL Forklift Tipping Bin 0.59cu/m | 1807L x 1150W x 555H (excl. lugs) | 695 | 165 | |
| 3001482 | WFL Forklift Tipping Bin 0.68cu/m | 1807L x 740W x 905H (excl. lugs) | 310 | 180 | |
| 3001483 | WFL Forklift Tipping Bin 1.1cu/m | 1807L x 1150W x 905H (excl. lugs) | 695 | 215 | |
| 3001484 | WFL Forklift Tipping Bin 2.1cu/m | 1807L x 1986W x 905H (excl. lugs) | 695 | 275 |
| Product Code | 3001480 | 3001481 | 3001482 | 3001483 | 3001484 |
| Product Name | WFL Forklift Tipping Bin 0.35cu/m | WFL Forklift Tipping Bin 0.59cu/m | WFL Forklift Tipping Bin 0.68cu/m | WFL Forklift Tipping Bin 1.1cu/m | WFL Forklift Tipping Bin 2.1cu/m |
| External Dimensions (mm) | 1807L x 740W x 555H (excl. lugs) | 1807L x 1150W x 555H (excl. lugs) | 1807L x 740W x 905H (excl. lugs) | 1807L x 1150W x 905H (excl. lugs) | 1807L x 1986W x 905H (excl. lugs) |
| Fork Pocket Centre (mm) | 310 | 695 | 310 | 695 | 695 |
| Net Weight (kg) | 140 | 165 | 180 | 215 | 275 |
| Product Code | 3001480 | 3001481 | 3001482 | 3001483 | 3001484 |
| Product Name | WFL Forklift Tipping Bin 0.35cu/m | WFL Forklift Tipping Bin 0.59cu/m | WFL Forklift Tipping Bin 0.68cu/m | WFL Forklift Tipping Bin 1.1cu/m | WFL Forklift Tipping Bin 2.1cu/m |
| External Dimensions (mm) | 1807L x 740W x 555H (excl. lugs) | 1807L x 1150W x 555H (excl. lugs) | 1807L x 740W x 905H (excl. lugs) | 1807L x 1150W x 905H (excl. lugs) | 1807L x 1986W x 905H (excl. lugs) |
| Fork Pocket Centre (mm) | 310 | 695 | 310 | 695 | 695 |
| Net Weight (kg) | 140 | 165 | 180 | 215 | 275 |
