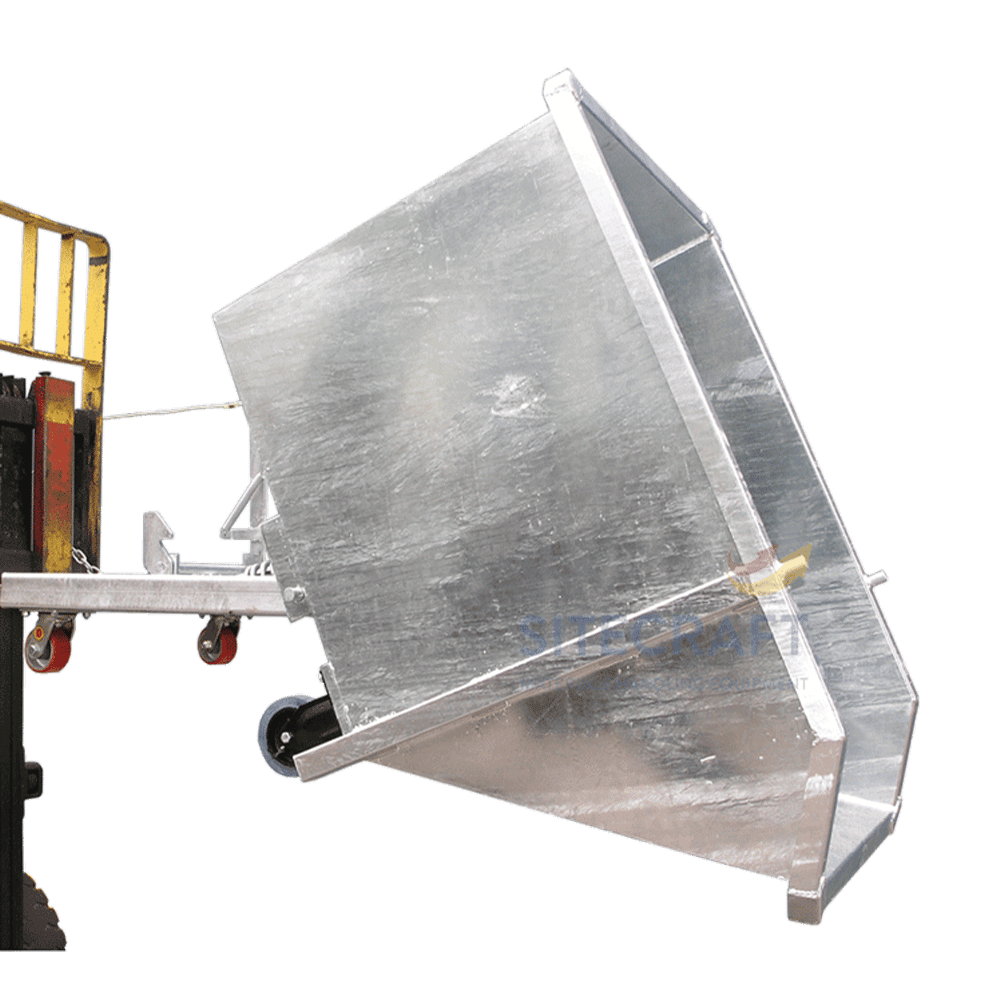

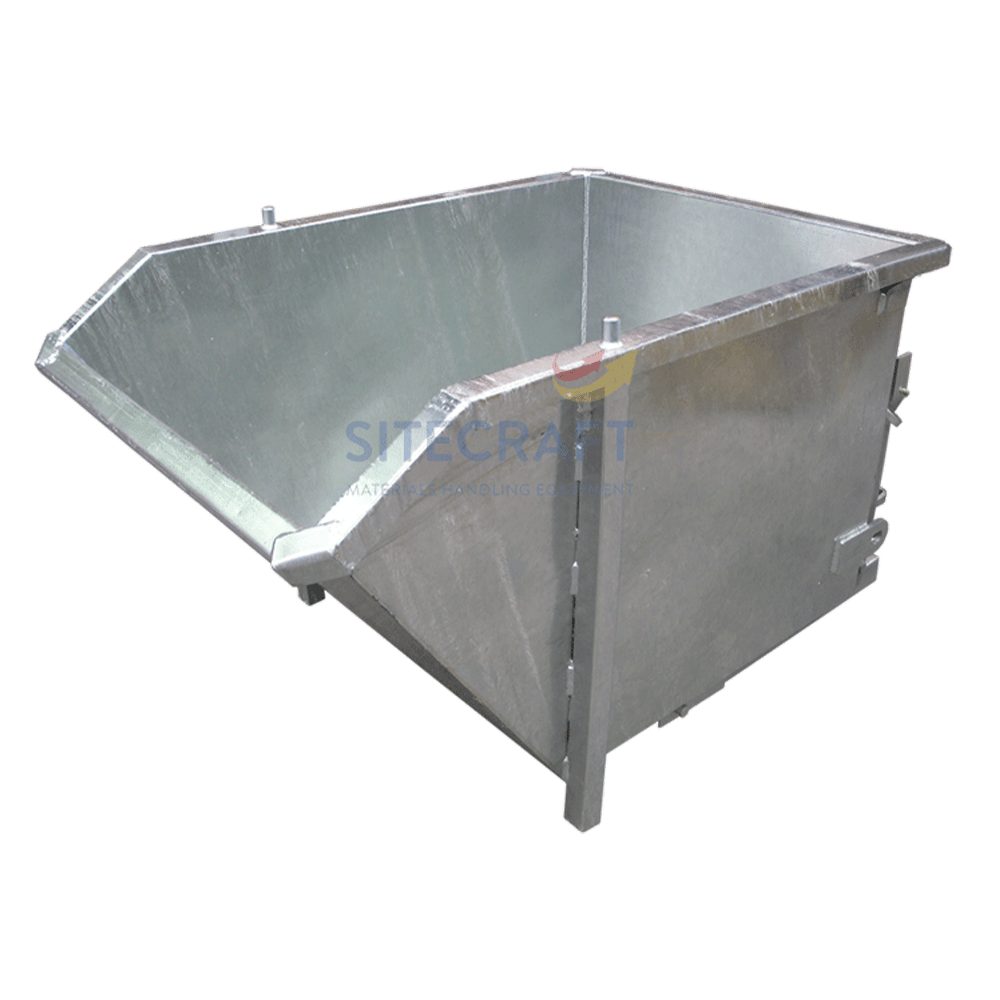

The TU bin is manufactured from 3mm plate and has a lower profile which allows more versatility in confined areas. The pouring lip and smooth formed edges make this bin ideal for food industry applications. The release mechanism is activated by the forklift operator pulling the draw rope from the driver’s seat. A shock absorber prevents impact forces being transmitted to the forklift during emptying. Available in either painted or galvanised finish and all can be optioned up with wheels and/or a lid.
| Product Code | Product Name | External Dimensions (mm) | Net Weight (kg) | Price |
|---|---|---|---|---|
| 3001224 | TU Forklift Tipping Bin 0.5cu/m - Galvanised | 1400L x 700W x 940H | 185 | |
| 3001225 | TU Forklift Tipping Bin 0.5cu/m - Painted | 1400L x 700W x 940H | 185 | |
| 3001226 | TU Forklift Tipping Bin 0.75cu/m - Galvanised | 1400L x 1000W x 940H | 200 | |
| 3001227 | TU Forklift Tipping Bin 0.75cu/m - Painted | 1400L x 1000W x 940H | 200 | |
| 3001218 | TU Forklift Tipping Bin 1.0cu/m - Galvanised | 1400L x 1300W x 940H | 215 | |
| 3001219 | TU Forklift Tipping Bin 1.0cu/m - Painted | 1400L x 1300W x 940H | 215 | |
| 3001220 | TU Forklift Tipping Bin 1.25cu/m - Galvanised | 1400L x 1600W x 940H | 240 | |
| 3001221 | TU Forklift Tipping Bin 1.25cu/m - Painted | 1400L x 1600W x 940H | 240 | |
| 3001222 | TU Forklift Tipping Bin 1.5cu/m - Galvanised | 1400L x 1900W x 940H | 260 | |
| 3001223 | TU Forklift Tipping Bin 1.5cu/m - Painted | 1400L x 1900W x 940H | 260 |
| Product Code | 3001224 | 3001225 | 3001226 | 3001227 | 3001218 | 3001219 | 3001220 | 3001221 | 3001222 | 3001223 |
| Product Name | TU Forklift Tipping Bin 0.5cu/m – Galvanised | TU Forklift Tipping Bin 0.5cu/m – Painted | TU Forklift Tipping Bin 0.75cu/m – Galvanised | TU Forklift Tipping Bin 0.75cu/m – Painted | TU Forklift Tipping Bin 1.0cu/m – Galvanised | TU Forklift Tipping Bin 1.0cu/m – Painted | TU Forklift Tipping Bin 1.25cu/m – Galvanised | TU Forklift Tipping Bin 1.25cu/m – Painted | TU Forklift Tipping Bin 1.5cu/m – Galvanised | TU Forklift Tipping Bin 1.5cu/m – Painted |
| External Dimensions (mm) | 1400L x 700W x 940H | 1400L x 700W x 940H | 1400L x 1000W x 940H | 1400L x 1000W x 940H | 1400L x 1300W x 940H | 1400L x 1300W x 940H | 1400L x 1600W x 940H | 1400L x 1600W x 940H | 1400L x 1900W x 940H | 1400L x 1900W x 940H |
| Net Weight (kg) | 185 | 185 | 200 | 200 | 215 | 215 | 240 | 240 | 260 | 260 |
| Product Code | 3001224 | 3001225 | 3001226 | 3001227 | 3001218 | 3001219 | 3001220 | 3001221 | 3001222 | 3001223 |
| Product Name | TU Forklift Tipping Bin 0.5cu/m – Galvanised | TU Forklift Tipping Bin 0.5cu/m – Painted | TU Forklift Tipping Bin 0.75cu/m – Galvanised | TU Forklift Tipping Bin 0.75cu/m – Painted | TU Forklift Tipping Bin 1.0cu/m – Galvanised | TU Forklift Tipping Bin 1.0cu/m – Painted | TU Forklift Tipping Bin 1.25cu/m – Galvanised | TU Forklift Tipping Bin 1.25cu/m – Painted | TU Forklift Tipping Bin 1.5cu/m – Galvanised | TU Forklift Tipping Bin 1.5cu/m – Painted |
| External Dimensions (mm) | 1400L x 700W x 940H | 1400L x 700W x 940H | 1400L x 1000W x 940H | 1400L x 1000W x 940H | 1400L x 1300W x 940H | 1400L x 1300W x 940H | 1400L x 1600W x 940H | 1400L x 1600W x 940H | 1400L x 1900W x 940H | 1400L x 1900W x 940H |
| Net Weight (kg) | 185 | 185 | 200 | 200 | 215 | 215 | 240 | 240 | 260 | 260 |
