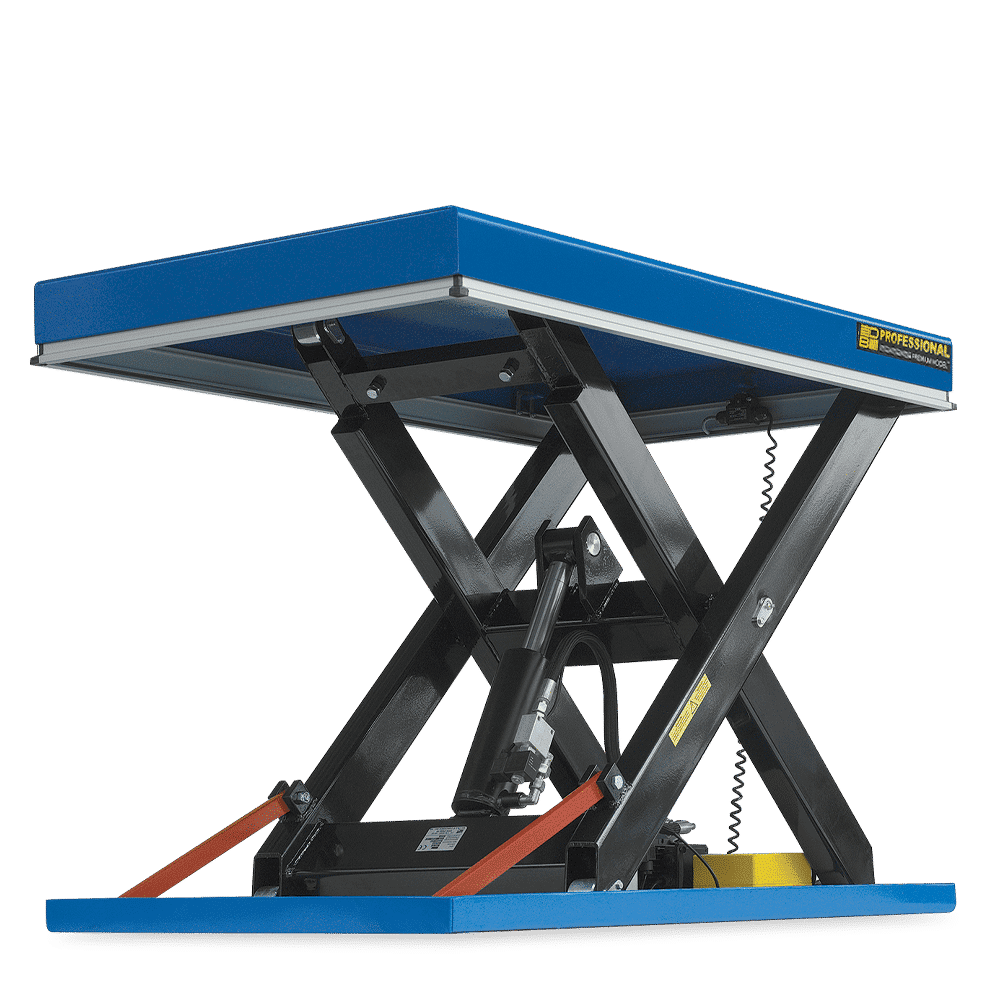

The Single Scissor Lift Tables are our most widely used industrial lifting platforms. These high quality scissor lift tables are driven by an electric motor mounted under the table, which is controlled by a pendant hand controller on a curly cable. The table utilizes a safety bar around the perimeter to sense any foreign objects in which case it will stop the movement instantly. These tables are normally operated from the factory floor but can be installed in a pit (require eye bolt lifting lugs). There are a range of standard models with varying capacities, lifting heights, table sizes etc. but they can be fully customised to user specifications. Lifting capacities of up to 8000kg are available. Speak to our experienced sales team for more information
| Product Code | Product Name | Capacity (kg) | Load Capacity (kg) | Max Platform Height (mm) | Min Platform Height (mm) | Platform Size (mm) | Price |
|---|---|---|---|---|---|---|---|
| 1941010 | Single Scissor Lift Table - 1T | 1000 | 1000Kg | 1000 | 180 | 1200 x 1200 | |
| 1941005 | Single Scissor Lift Table- 1T | 1000 | 1000Kg | 1330 | 230 | 2000 x 1000 | |
| 1941012 | Single Scissor Lift Table - 2T | 2000 | 2000Kg | 1050 | 230 | 1350 x 1200 | |
| 1941139 | Single Scissor Lift Table - 4T | 4000 | 4000Kg | 1120 | 300 | 1350 x 1200 |
| Product Code | 1941010 | 1941005 | 1941012 | 1941139 |
| Product Name | Single Scissor Lift Table – 1T | Single Scissor Lift Table- 1T | Single Scissor Lift Table – 2T | Single Scissor Lift Table – 4T |
| Capacity (kg) | 1000 | 1000 | 2000 | 4000 |
| Load Capacity (kg) | 1000Kg | 1000Kg | 2000Kg | 4000Kg |
| Max Platform Height (mm) | 1000 | 1330 | 1050 | 1120 |
| Min Platform Height (mm) | 180 | 230 | 230 | 300 |
| Platform Size (mm) | 1200 x 1200 | 2000 x 1000 | 1350 x 1200 | 1350 x 1200 |
