Ultra-versatile sit-down / stand-up crossover tugger

VEHICLE TYPE | Tow Tugs

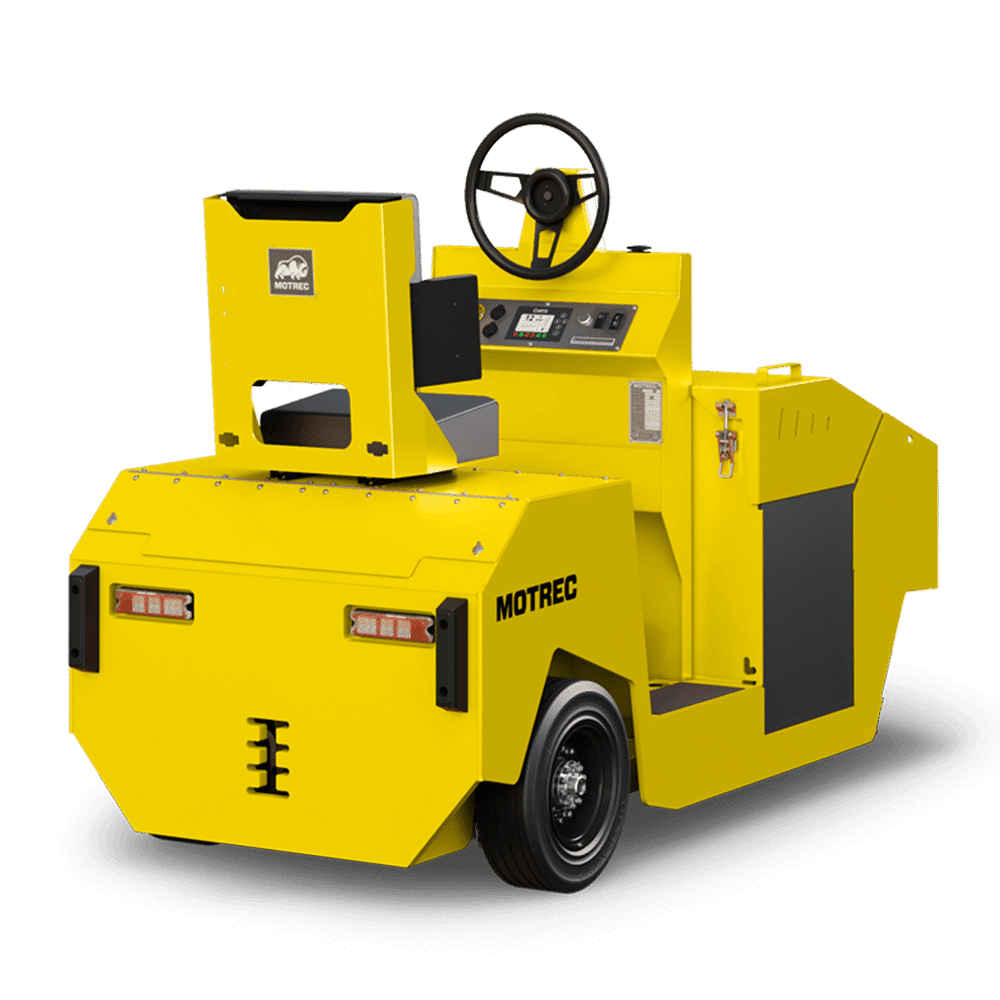

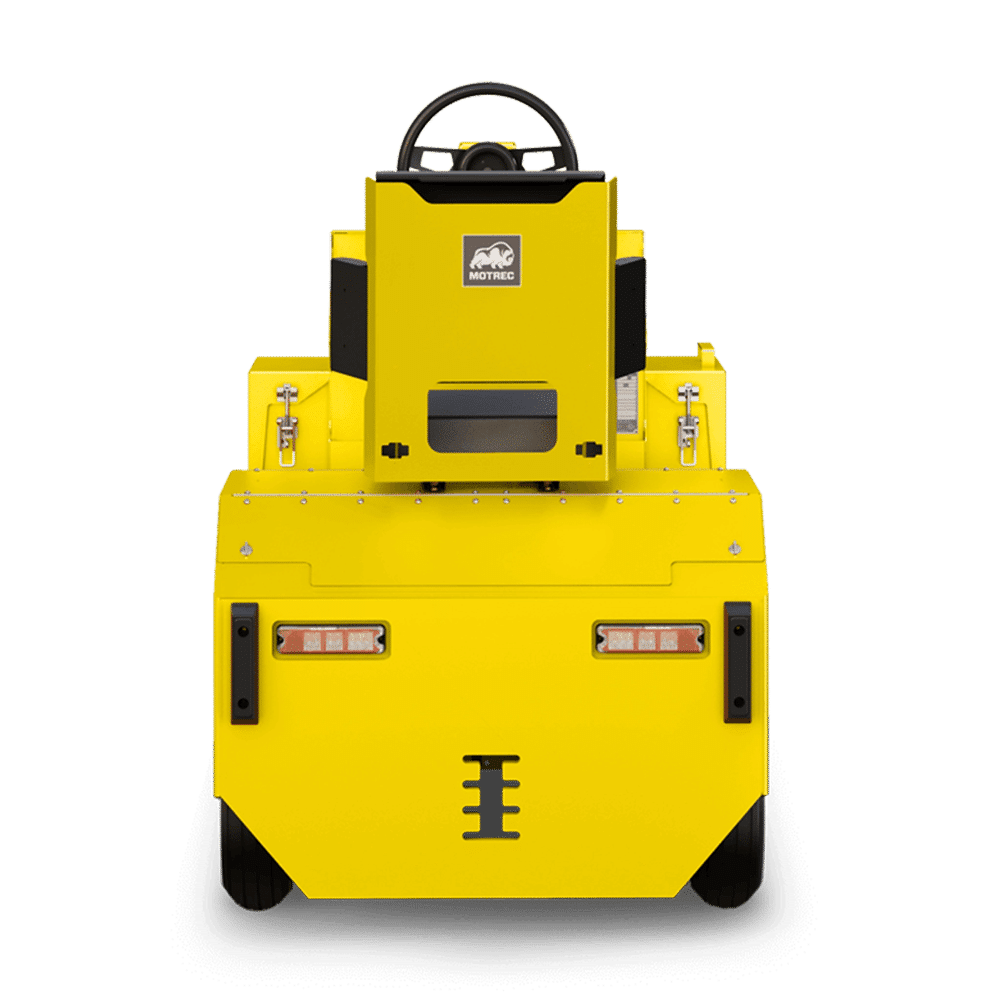

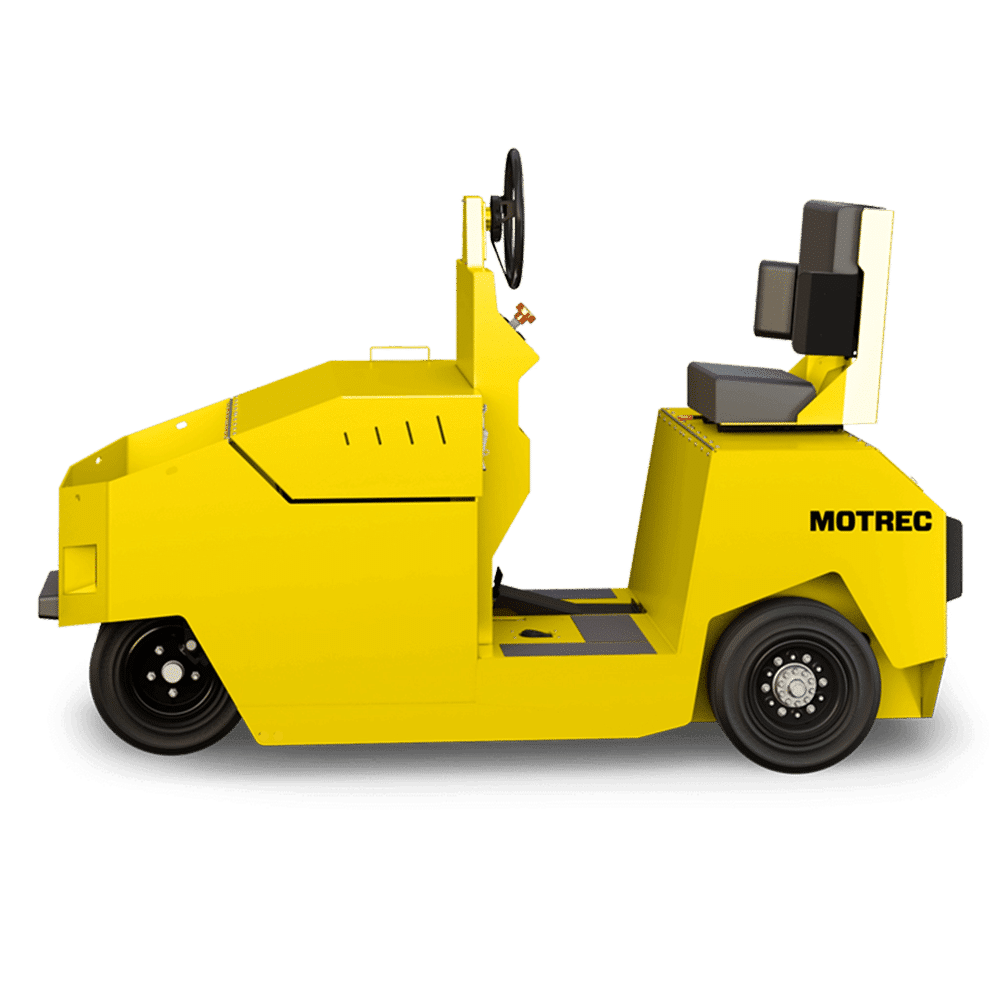

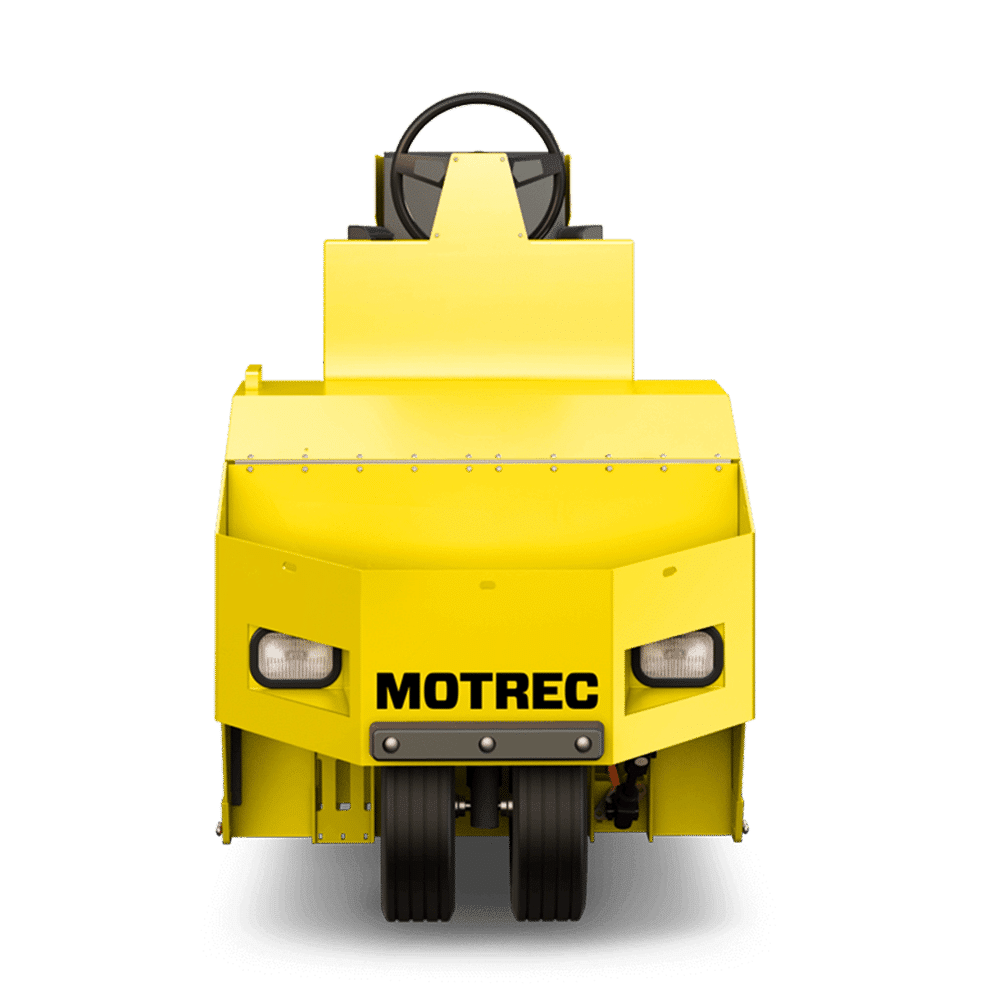

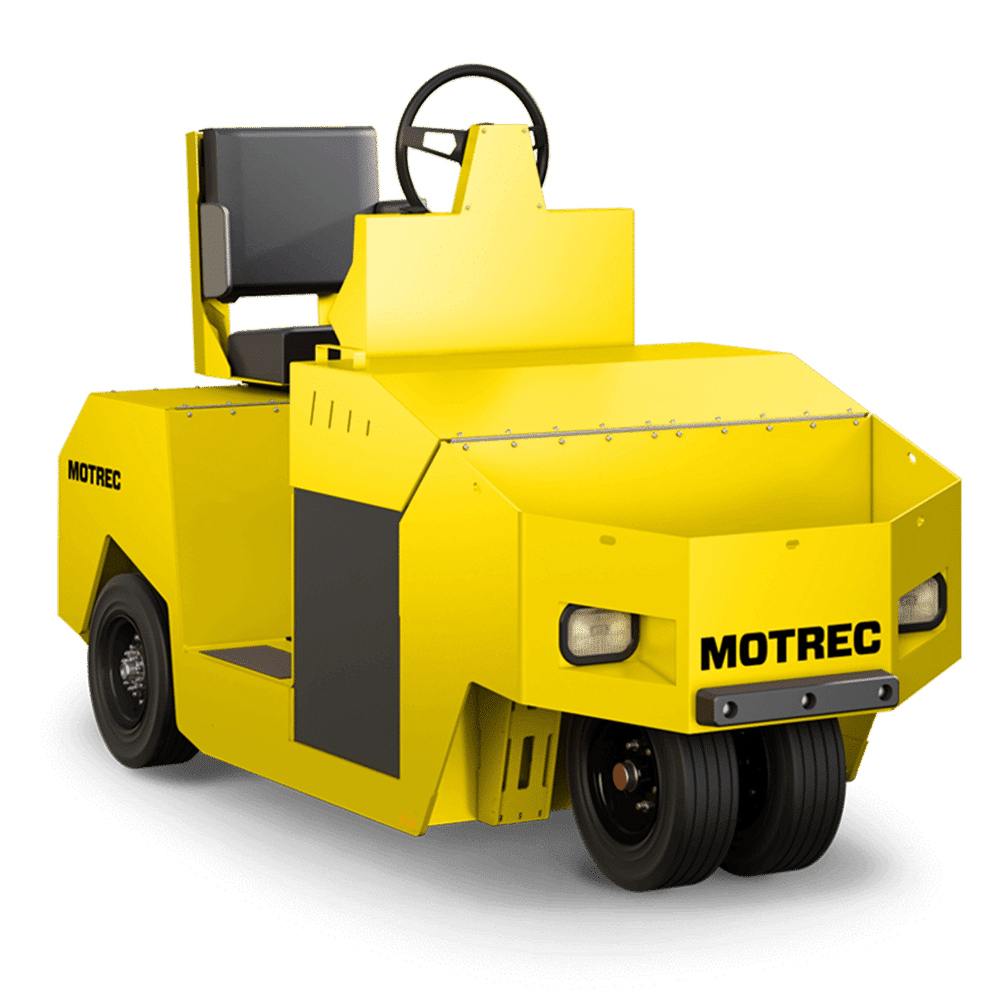

MT-310

The MT-310 is in a class of its own. Designed from the ground up to offer exceptional versatility, this hard-working tow tractor is jam-packed with features operators will appreciate – starting with its ergonomic one-touch sit-down / stand-up seat that reduces fatigue and strain. The easy-access rear hitch means no more constantly climbing in and out of the vehicle. A low-maintenance, high-efficiency AC vehicle with a confident 7,257 Kg. towing capacity and full customization possibilities. EE rating available.

ul-logo@2x-40h
ansi-logo@2x-40h
MT-310
PASSENGER
LOAD CAPACITY
TOWING CAPACITY
SPEED
TURNING RADIUS
Specifications and standard equipment are subject to change without notice.
36V
1
230 kg
7260 kg
10 kmh
1980 mm
36V
Passengers
1
Load Capacity
230 kg
Towing Capacity
7260 kg
Speed
10 kmh
Turning Radius
1980 mm
Motrec-sit-standard-up-seats-Op-V1
INNOVATION

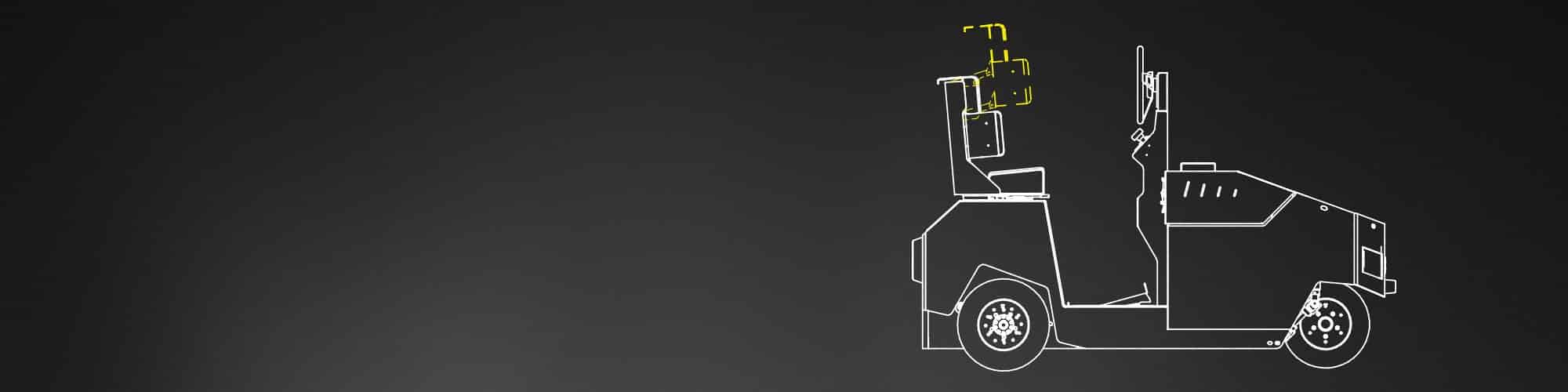

New Sit-Down / Stand-Up seat

Motrec’s new sit-down / stand-up seat makes it easy for operators of virtually all shapes and sizes to work comfortably from a wide range of driving positions. Operators simply pull up on the seat to raise it to the standing position; they simply push down to lower it to the desired sitting position.


Image are for illustrative purposes only and may differ from the actual product.

Motrec-AC-Powertrain-Op-V1
AC POWERTRAIN
High-efficiency asynchronous AC / Direct Drive motor

Offers better control for full motor performance, as well as higher possible speeds and better torque at low speeds. Maintenance-free brushless electric motor equipped with temperature and speed sensors.


Image are for illustrative purposes only and may differ from the actual product.

Motrec-Battery-Op-V1
BATTERY
Robust long-life industrial batteries

No more mid-shift recharging! These powerful batteries can last a full shift, even with long distances. Supports Opportunity Rapid charging. Encased for easy replacing. Various options and models available.


Image are for illustrative purposes only and may differ from the actual product.

Motrec-Controller-Op-V1
CONTROLLER SAFETY
AC controller with sealed connectors paired with multifunction display

Allows for precise speed control for greater safety and vehicle performance. Includes indicators for speed, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.


Image are for illustrative purposes only and may differ from the actual product.

Motrec-Battery-Control-Op-V1
SAFETY
Protect operators and your investment

Standard features like recessed lights, sealed electrical components, laser-engraved backlit buttons and heavy-duty ignition key sealed from water and dust all increase operator safety while better protecting your investment.


Image are for illustrative purposes only and may differ from the actual product.

MT-310_Top
MT-340_Side
MT-340_Turn
36V
POWER TRAIN
Motor
10 HP brushless AC motor
Drive Axel
Helical gear differential
Transmission
Direct drive
Controller
Electronic AC speed controller
ENERGY
Voltage
36V
Battery
Battery to be specified
Charger
Charger to be specified
CHASSIS
Body
All-steel unibody construction, powder coated
Suspension
Leaf springs rear suspension system
Brakes
Rear wheel hydraulic drum brakes, regenerative braking
Wheels
Solid Tyres
Steering
Automotive steering wheel
Seats
Sit-down / Stand-up seat
EQUIPMENT
Lights
Dual LED headlights & tail/brake lights
Indicators
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
36V/12V converter for 12-volt accessories, backlit and sealed buttons
Safety
Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape

Specifications and standard equipment are subject to change without notice.

MOTOR
36V
10 HP brushless AC motor
Drive Axle
36V
Helical gear differential
Transmission
36V
Direct drive
Controller
36V
Electronic AC speed controller
Voltage
36V
36V
Battery
36V
Battery to be specified
Charger
36V
Charger to be specified
Body
36V
All-steel unibody construction, powder coated
Suspension
36V
Leaf springs rear suspension system
Brakes
36V
Rear wheel hydraulic drum brakes, regenerative braking
Wheels
36V
Solid Tyres
Steering
36V
Automotive steering wheel
Seats
36V
Sit-down / Stand-up seat
Lights
36V
Dual LED headlights & tail/brake lights
Indicators
36V
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Accessories
36V
36V/12V converter for 12-volt accessories, backlit and sealed buttons
Safety
36V
Reverse alarm, deadman seat switch, horn, emergency stop button, anti slip griptape

Specifications and standard equipment are subject to change without notice.
