The game‑changing stock chaser

Motrec-MS-260-1

Motrec-MS-260-2

Motrec-MS-260-3

Motrec-MS-260-4

Motrec-MS-260-5

VEHICLE TYPE | Tow Tugs

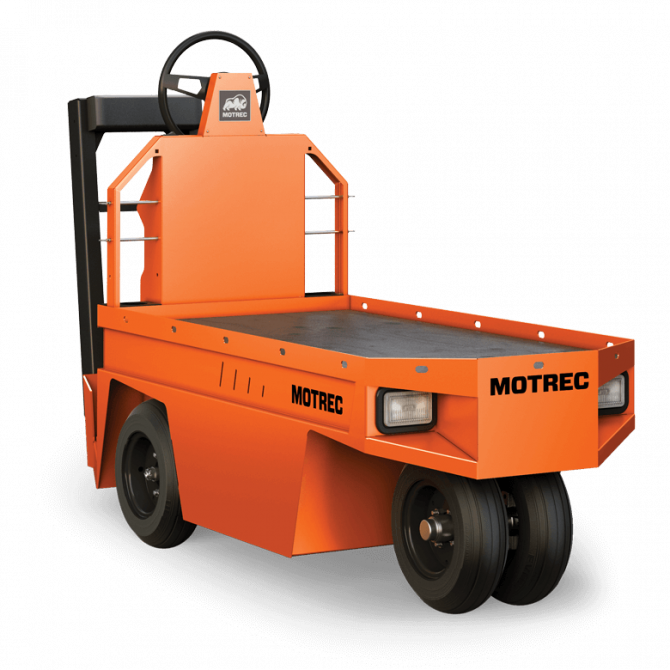

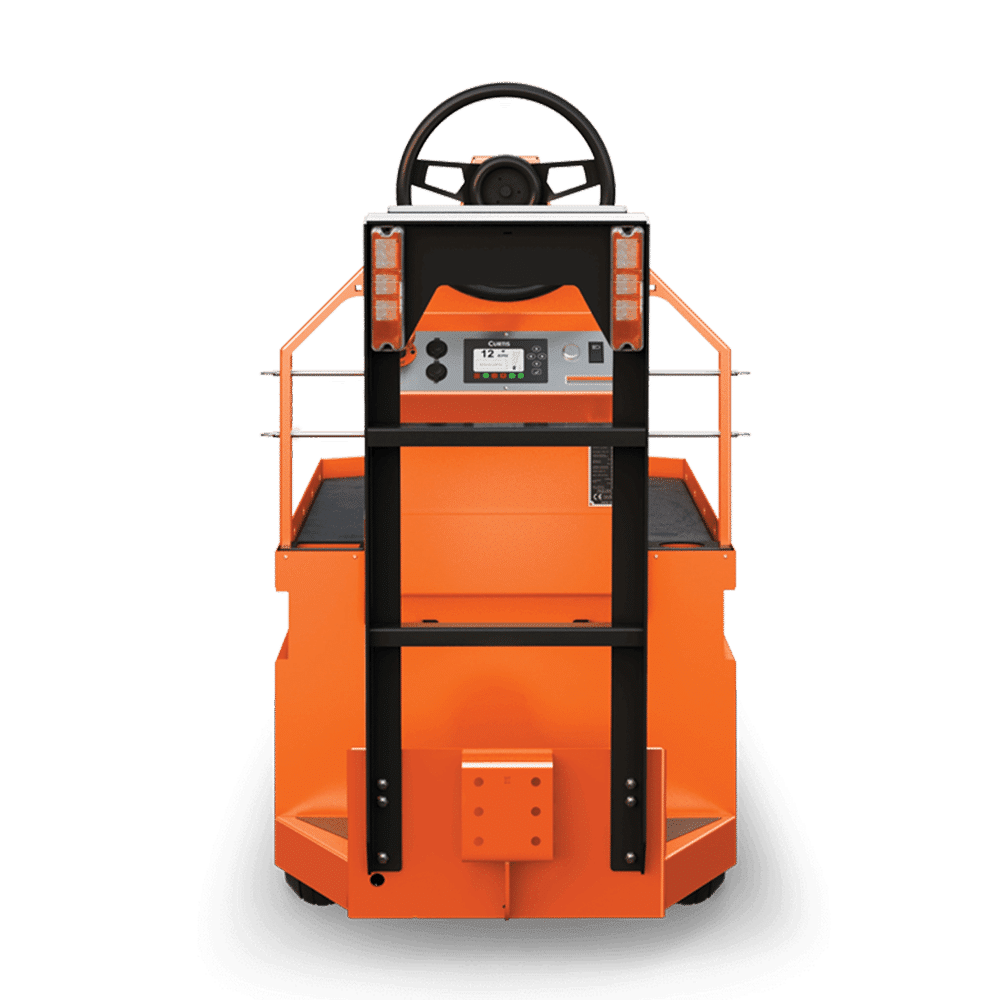

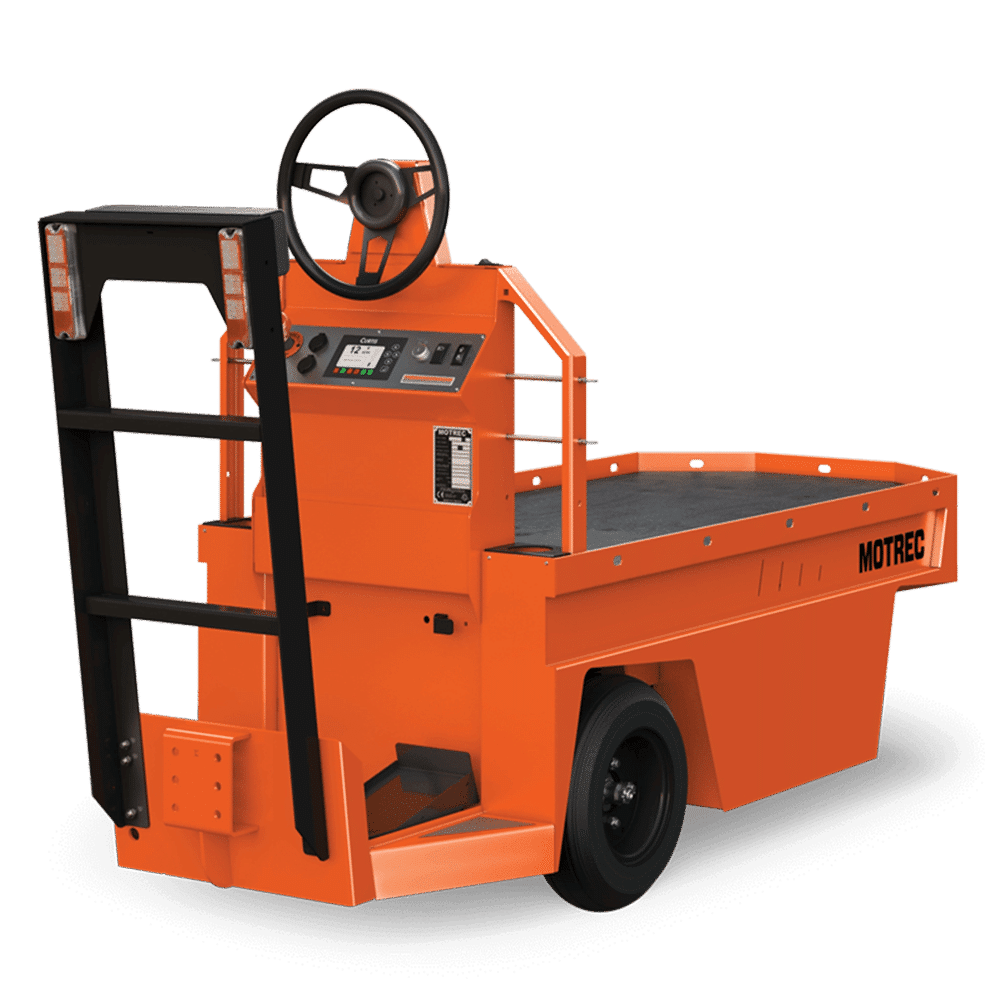

Stock Chaser MS-260

The industry’s most versatile stand-up stock chaser / order picker now offers even more. More capacity: up to 793 Kg. for towing and 2,721Kg. for loads. More standard features: leaf spring suspension, integrated 2-step ladder and loading anchors, USB charger, storage compartments, fully protected electrical components and more. More options: AC powertrain and robust front rubber bumper. Of course, the MS-260 still has a long list of standard driver-friendly features: 1,500 mm deck, dual front wheels, short turning radius, light-touch controls, padded backrest, ergonomic driving position, low-step entry…. And as always, it can be fully customized.

REQUEST A QUOTE

REQUEST A QUOTE

Motrec-MS-260-1

Motrec-MS-260-2

Motrec-MS-260-3

Motrec-MS-260-4

Motrec-MS-260-5

Stock Chaser MS-260	PASSENGER	LOAD CAPACITY	TOWING CAPACITY	SPEED	TURNING RADIUS


Specifications and standard equipment are subject to change without notice.
36V	1	680 kg	2720 kg	13 kmh	1500 mm
48V	1	790 kg	2720 kg	13 kmh	1500 mm
48V Lithium	1	790 kg	2720 kg	13 kmh	1500 mm
48V XL	1	905 kg	2720 kg	13 kmh	1612 mm

36V
Passengers	1
Load Capacity	680 kg
Towing Capacity	2720 kg
Speed	13 kmh
Turning Radius	1500 mm

48V
Passengers	1
Load Capacity	790 kg
Towing Capacity	2720 kg
Speed	13 kmh
Turning Radius	1500 mm

48V Lithium
Passengers	1
Load Capacity	790 kg
Towing Capacity	2720 kg
Speed	13 kmh
Turning Radius	1500 mm

48V XL
Passengers	1
Load Capacity	905 kg
Towing Capacity	2720 kg
Speed	13 kmh
Turning Radius	1612 mm

Motrec-MS-260-Performance-Op-V1

PERFORMANCE

Safely handle heavy loads

Up to 793 kg. towing capacity and 2721 kg. load capacity supported by a sturdy leaf spring suspension to spread heavy loads more widely over the machine’s chassis. Improves handling and control while maximizing suspension travel and helping to reduce sway.

Image are for illustrative purposes only and may differ from the actual product.

Motrec-MS-260-Dual-Front-Wheels-Op-V1

DUAL FRONT WHEELS

Stability-boosting dual front wheels

Improves vehicle stability and maneuverability. Robust dual design is twice as strong as a single wheel. Increases wheel lifespan and reduces maintenance as wheels suffer less wear and tear.

Image are for illustrative purposes only and may differ from the actual product.

Motrec-Rollout-Op-V1

ROLL-OUT

Time-saving roll-out battery compartment

Makes changing batteries extremely quick and easy. Just roll out the compartment to replace the battery with a fresh one and you’re good to go. Keeps vehicles running round-the-clock. Easy maintenance.

Image are for illustrative purposes only and may differ from the actual product.

Regenerative-Op-V1

REGENERATIVE

Energy-saving regenerative braking

Lengthens running time by using energy more efficiently. Braking is automatically applied whenever the accelerator is released, feeding energy back into the battery. Operator also uses the brake less often, reducing wear and tear.

Image are for illustrative purposes only and may differ from the actual product.

Motrec-MS-260-Performance-Op-V1

CONVENIENCE

Keep everything securely within reach

Integrated storage compartments, loading anchors and the 2-step ladder keep everything within easy reach and securely in place. The USB charger keeps your devices charged at all times.

Image are for illustrative purposes only and may differ from the actual product.

Motrec-Battery-Control-Op-V1

CONVENIENCE

Keep everything securely within reach

Integrated storage compartments, loading anchors and the 2-step ladder keep everything within easy reach and securely in place. The USB charger keeps your devices charged at all times.

Image are for illustrative purposes only and may differ from the actual product.

36V	48V	48V Lithium	48V XL

POWER TRAIN
Motor
10 HP shunt motor	15 HP brushless AC motor	15 HP brushless AC motor	15 HP brushless AC motor
Drive Axel
Helical gear differential	Helical gear differential	Helical gear differential	Helical gear differential
Transmission
Direct drive	Direct drive	Direct drive	Direct drive
Controller
SEPEX Electronic speed controller	Electronic speed controller	AC Electronic speed controller	AC Electronic speed controller

ENERGY
Voltage
36V	48V	48V	48V
Battery
Six 6V-225AH batteries	Eight 6V-225AH batteries	Lithium 48V-180Ah 9.3Kwh, Lithium 48V-120Ah 6.2Kwh	Eight 6V-225AH batteries
Charger
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic	48V High-frequency on-board charger 1.2Kwh, 48V High-frequency on-board charger 2.4Kwh	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic

CHASSIS
Body
All-steel unibody construction, powder coating	All-steel unibody construction, powder coating	15 HP brushless AC motor	15 HP brushless AC motor
Suspension
Leaf springs rear suspension system, dual front wheels to ensure the stability	Leaf springs rear suspension system, dual front wheels to ensure the stability	Rear leaf springs suspension	Rear leaf springs suspension, Dual front wheels to ensure the stability
Brakes
Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking	Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking	Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking	Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking
Wheels
Pneumatic LRC tires	Pneumatic LRC tires	Pneumatic LRC tires	Pneumatic LRC tires
Steering
Automotive steering wheel	Automotive steering wheel	Automotive steering wheel	Automotive steering wheel
Seats
Padded backrest	Padded backrest	Padded backrest	Padded backrest

EQUIPMENT
Lights
LED dual headlights	LED dual headlights	LED dual headlights	LED dual headlights
Indicators
Battery status indicator	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability	Multifunction display (including speedometer, battery state of charge, hour meter, odometer and fault warnings), Password-protected parameters and monitoring capability	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability
Accessories
USB charger, backlit and sealed buttons	USB charger, Converter for 12-volt accessories, Backlit and sealed buttons	USB charger, DC/DC converter, Backlit and sealed buttons	USB charger, Converter for 12-volt accessories, Backlit and sealed buttons
Safety
Reverse alarm, deadman foot switch, horn, emergency stop button, jam-free pedal, anti slip griptape, charging interlock switch	Reverse alarm, deadman foot switch, horn, emergency stop button, jam-free pedal, anti slip griptape, charging interlock switch	Reverse alarm, Deadman foot switch, Horn, Emergency Stop Button, Jam-free pedal, Anti slip griptape, Charging interlock switch	Reverse alarm, deadman foot switch, horn, emergency stop button, jam-free pedal, anti slip griptape, charging interlock switch

Specifications and standard equipment are subject to change without notice.

MOTOR
36V	10 HP shunt motor
48V	15 HP brushless AC motor
48V Lithium	15 HP brushless AC motor
48V XL	15 HP brushless AC motor

Drive Axle
36V	Helical gear differential
48V	Helical gear differential
48V Lithium	Helical gear differential
48V XL	Helical gear differential

Transmission
36V	Direct drive
48V	Direct drive
48V Lithium	Direct drive
48V XL	Direct drive

Controller
36V	SEPEX Electronic speed controller
48V	Electronic speed controller
48V Lithium	AC Electronic speed controller
48V XL	“SEPEX Electronic speed controller

Voltage
36V	36V
48V	48V
48V Lithium	48V
48V XL	48V

Battery
36V	Six 6V-225AH batteries
48V	Eight 6V-225AH batteries
48V Lithium	Lithium 48V-180Ah 9.3Kwh, Lithium 48V-120Ah 6.2Kwh
48V XL	Eight 6V-225AH batteries

Charger
36V	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
48V	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic
48V Lithium	48V High-frequency on-board charger 1.2Kwh, 48V High-frequency on-board charger 2.4Kwh
48V XL	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic

Body
36V	All-steel unibody construction, powder coating
48V	All-steel unibody construction, powder coating
48V Lithium	All-steel unibody construction, powder coating
48V XL	All-steel unibody construction, powder coating

Suspension
36V	Leaf springs rear suspension system, dual front wheels to ensure the stability
48V	Leaf springs rear suspension system, dual front wheels to ensure the stability
48V Lithium	Rear leaf springs suspension
48V XL	Rear leaf springs suspension, Dual front wheels to ensure the stability

Brakes
36V	Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking
48V	Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking
48V Lithium	Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking
48V XL	Self-adjusting H.D. drum brakes, automatic parking brake, regenerative braking

Wheels
36V	Pneumatic LRC tires
48V	Pneumatic LRC tires
48V Lithium	Pneumatic LRC tires
48V XL	Pneumatic LRC tires

Steering
36V	Automotive steering wheel
48V	Automotive steering wheel
48V Lithium	Automotive steering wheel
48V XL	Automotive steering wheel

Seats
36V	Padded backrest
48V	Padded backrest
48V Lithium	Padded backrest
48V XL	Padded backrest

Lights
36V	LED dual headlights
48V	LED dual headlights
48V Lithium	LED dual headlights
48V XL	LED dual headlights

Indicators
36V	Battery status indicator
48V	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability
48V Lithium	Multifunction display (including speedometer, battery state of charge, hour meter, odometer and fault warnings), Password-protected parameters and monitoring capability
48V XL	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability

Accessories
36V	USB charger, backlit and sealed buttons
48V	USB charger, Converter for 12-volt accessories, Backlit and sealed buttons
48V Lithium	USB charger, DC/DC converter, Backlit and sealed buttons
48V XL	USB charger, Converter for 12-volt accessories, Backlit and sealed buttons

Safety
36V	Reverse alarm, deadman foot switch, horn, emergency stop button, jam-free pedal, anti slip griptape, charging interlock switch
48V	Reverse alarm, deadman foot switch, horn, emergency stop button, jam-free pedal, anti slip griptape, charging interlock switch
48V Lithium	Reverse alarm, Deadman foot switch, Horn, Emergency Stop Button, Jam-free pedal, Anti slip griptape, Charging interlock switch
48V XL	Reverse alarm, deadman foot switch, horn, emergency stop button, jam-free pedal, anti slip griptape, charging interlock switch

Specifications and standard equipment are subject to change without notice.

36V	48V	48V Lithium	48V XL

VEHICLE DIMENSIONS
Height
1370 mm	1370 mm	1370 mm	1416 mm
Length
2200 mm	2200 mm	2200 mm	2178 mm
Width
760 mm	760 mm	760 mm	1143 mm
Wheel Base
1100 mm	1100 mm	1100 mm	1117 mm

DECK DIMENSIONS
Deck Height
580 mm	580 mm	580 mm	622 mm
Deck Length
1500 mm	1500 mm	1500 mm	1498 mm
Deck Width
760 mm	760 mm	760 mm	1143 mm

BATTERY DIMENSIONS
Battery Weight
–	–	–	–
Battery Height
–	–	–	–
Battery Length
–	–	–	–
Battery Width
–	–	–	–

Specifications and standard equipment are subject to change without notice.

Height
36V	1370 mm
48V	1370 mm
48V Lithium	1370 mm
48V XL	1416 mm

Length
36V	2200 mm
48V	2200 mm
48V Lithium	2200 mm
48V XL	2178 mm

Width
36V	760 mm
48V	760 mm
48V Lithium	760 mm
48V XL	1143 mm

Wheel Base
36V	1100 mm
48V	1100 mm
48V Lithium	1100 mm
48V XL	1117 mm

Deck Height
36V	580 mm
48V	580 mm
48V Lithium	580 mm
48V XL	622 mm

Deck Length
36V	1500 mm
48V	1500 mm
48V Lithium	1500 mm
48V XL	1498 mm

Deck Width
36V	760 mm
48V	760 mm
48V Lithium	760 mm
48V XL	1143 mm

Specifications and standard equipment are subject to change without notice.

Our most popular options. Packaged for your convenience.

Customers often order the same group of options. So we created a number of packages to make building your perfect vehicle easier than ever.

REQUEST A QUOTE

The road to the perfect vehicle is paved with options.

If one of our option packages isn’t quite what you need, our long list of options will fit the bill. Here are just some of our more popular options. Contact us for the complete list.

REQUEST A QUOTE

A little or a lot, customization goes a long way.

Starting with greater productivity and safety. Less maintenance and lower TCO, too. Whatever the degree of customization needed, our engineering team will get your vehicle to you quickly and for less than you might think. Our handy ordering and quote request tools also make the process extremely easy.

REQUEST A QUOTE

Previous slide

Next slide

LIKE WHAT YOU SEE ?

Every Motrec vehicle is engineered to offer years of reliable, low-maintenance
performance to help you boost productivity and lower TCO.
