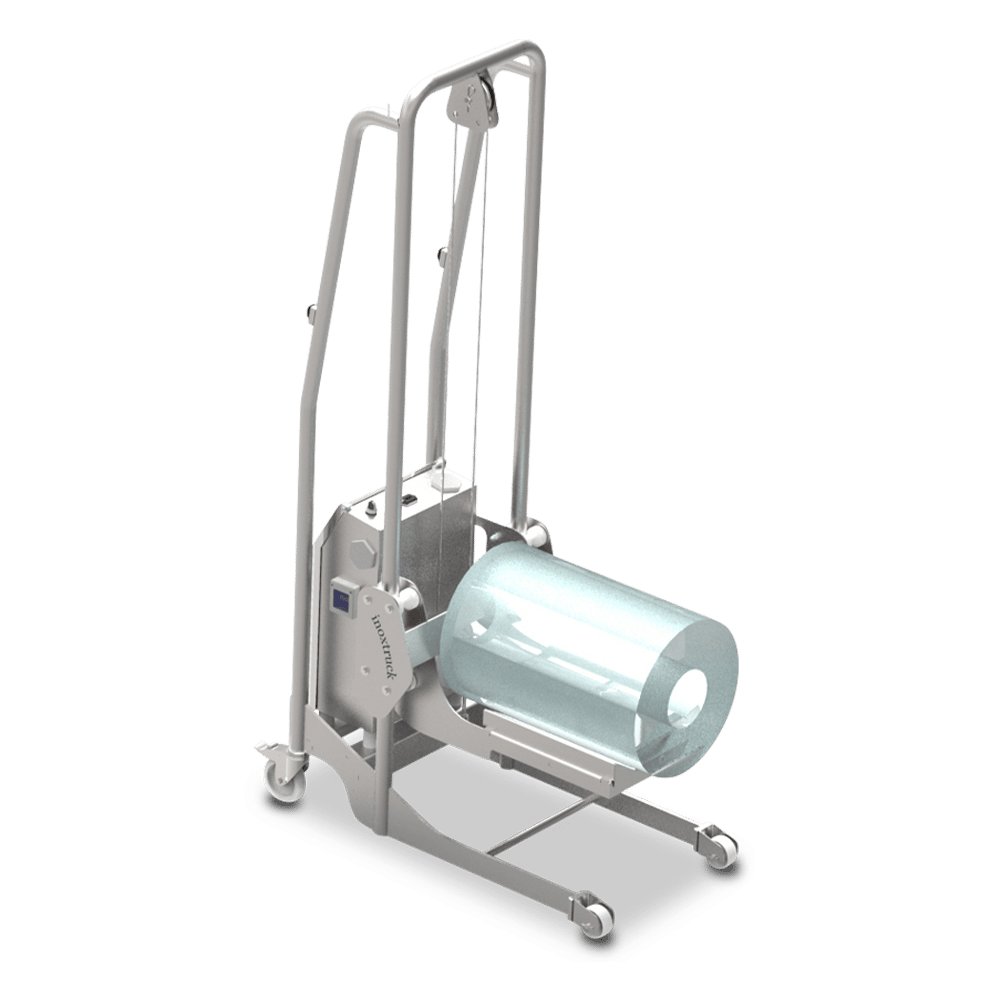

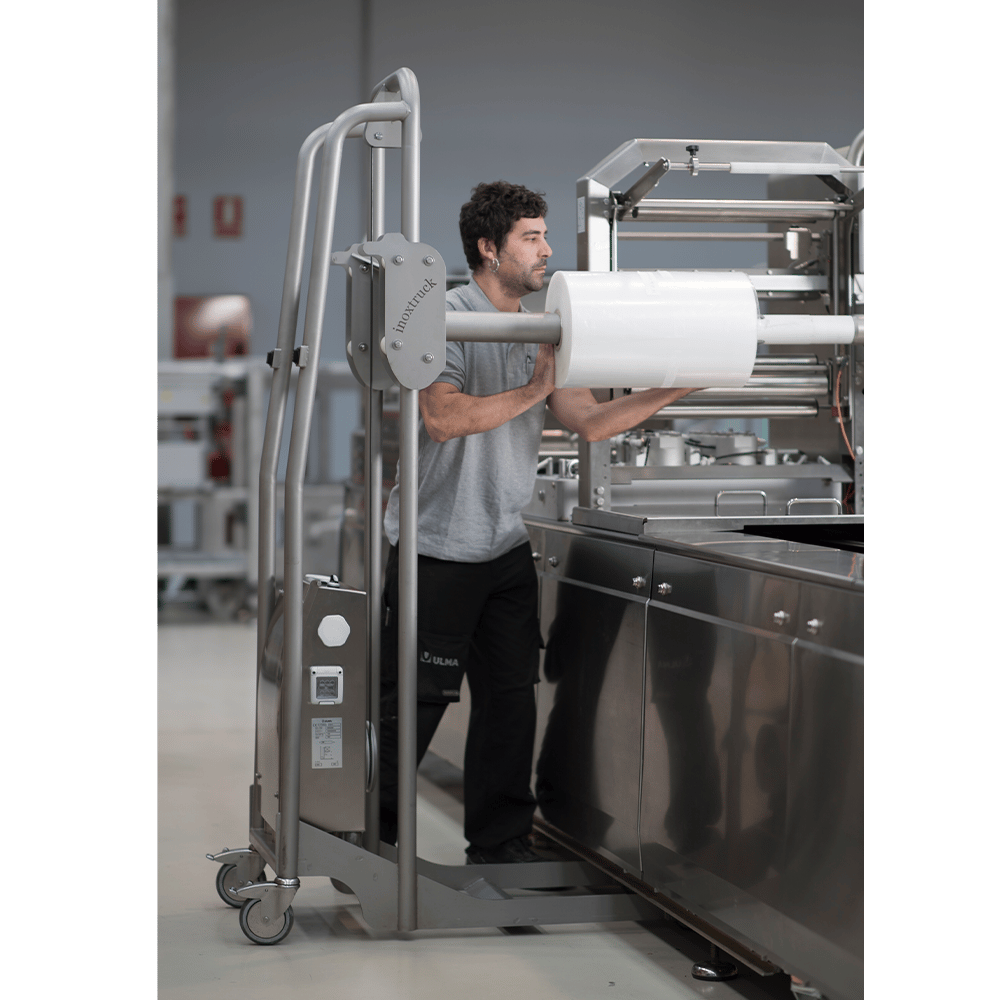

The cleanroom specific Mini Load stackers with electric lifting system are designed to handle rolls, boxes, tilting attachments, film reels or other implements in production clean rooms and packaging lines of food. The electric lift/lower function coupled with the lightweight lifter design ensures almost effortless manual handling of heavy reels.
Product Features
Hygienic Innovative Design:
Totally open chassis, continuous seam welding, protected lifting cable and tubular structure ensure this can handle harsh daily washdown environments with no effect on the machine. All materials are stainless steel, plastic or polymer eliminating the risk of rusting and ensuring a very long life. No lifting chains and No grease fittings.
Ergonomic and Safety:
The drive wheels with brakes make the loading and unloading of rolls and other implements a safe operation. Reel Handling
Attachment:
Featuring a fully powered internal clamp and rotate attachment. The attachment will feature an additional chuck so it can be quickly converted to handle 6-inch cores as well as 3-inch cores.
| Product Code | 51491010 |
| Product Name | Ulma Inoxtruck Stainless Steel Mini Load Stacker – Reel Handling Lifter |
| Capacity (kg) | 200 |
| Load Centre Distance (mm) | 450 |
| Overall Height (mm) | 1995 |
| Product Code | 51491010 |
| Product Name | Ulma Inoxtruck Stainless Steel Mini Load Stacker – Reel Handling Lifter |
| Capacity (kg) | 200 |
| Load Centre Distance (mm) | 450 |
| Overall Height (mm) | 1995 |
