Type DG-B Drum Lifter

Code: 3001034

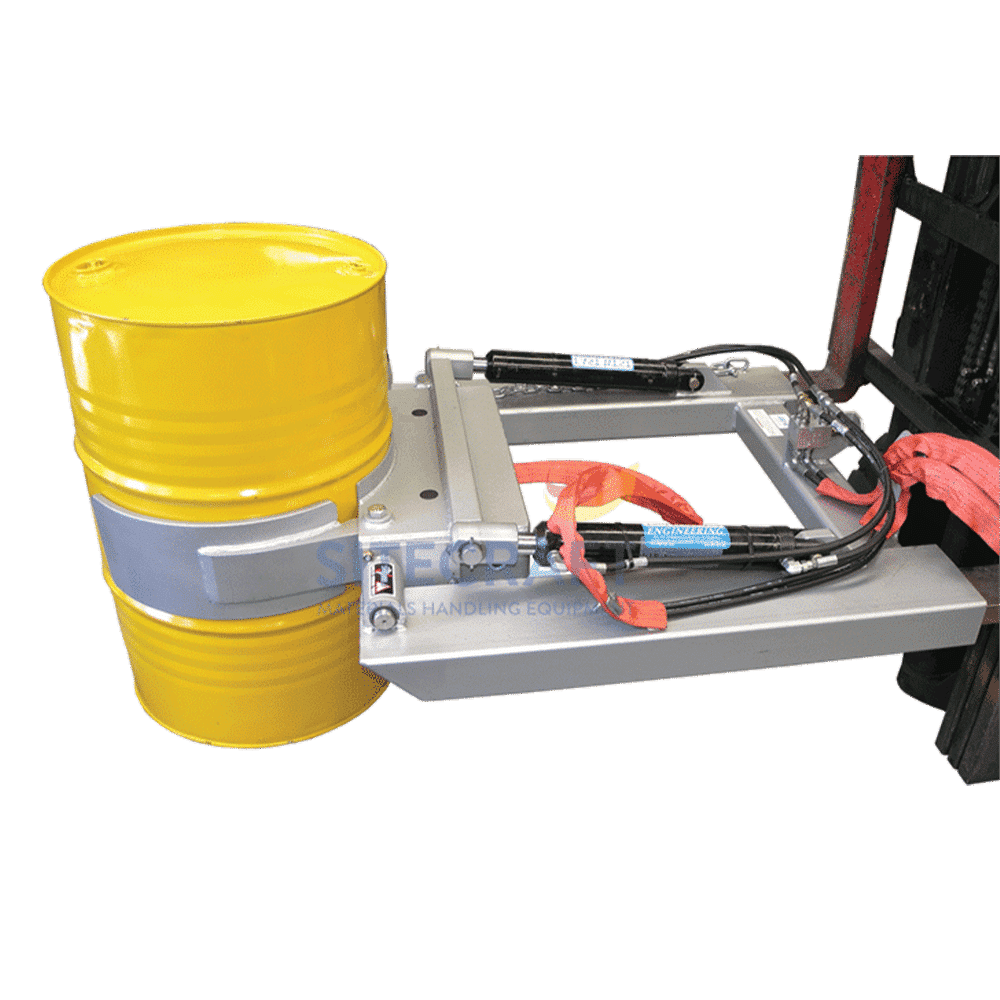

The Hydraulic Drum Rotator is a heavy duty 205 litre Drum Lifter with hydraulic grab/rotation ability. With 1 tonne lift capacity, this attachment is ideal for the recycle industry and for mining applications. This lifter is able to pick a single drum from a pallet of 4 without disturbing the other 3 drums.This unit is fitted with quick connect couplings for connection to the 3rd and 4th Forklift hydraulic valves. The standard finish is painted enamel.

Safe Working Load (SWL): 1000kg
Unit Weight: 175kg
130° Rotation
Load Centre: 1307.5mm
Pocket Size: 185 x 65mm
Pocket Centres: 874mm
Horizontal Centre of Gravity: 700mm

Specifications

Product Code 3001034
Product Name Type DG-B Drum Lifter

Specifications

Product Code 3001034
Product Name Type DG-B Drum Lifter

Need Help With Selecting The Right Product ?
Contact a Sitecraft Product Specialist Call: 1300 363 152

Request a Quote
