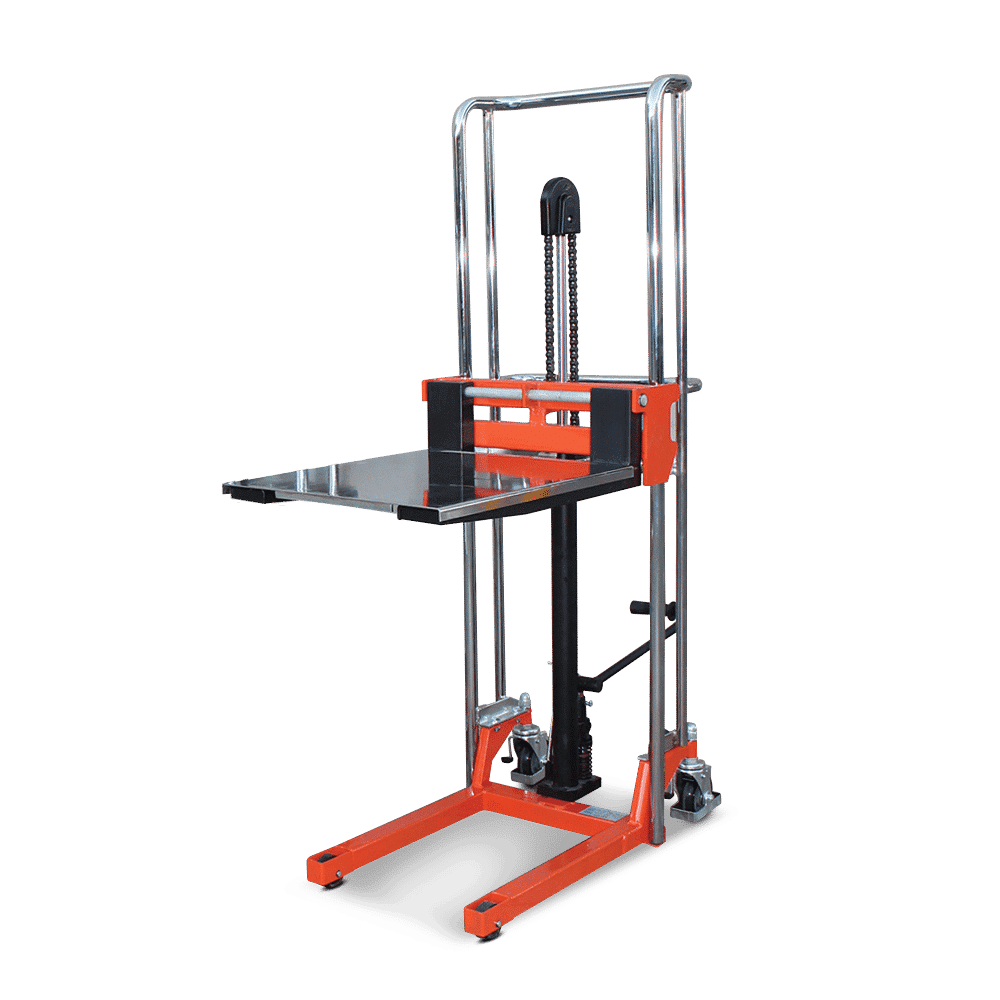

Logistec Hydraulic Lift Tables

Code: 5781046

This mobile platform lifter has a maximum lift capacity of 400kg. Features adjustable forks and is supplied with load platform. Hydraulic foot pump allows easy incremental load raising and controlled lowering. Supplied with polyurethane castors rigid castors at front, plus two locking swivel castors at the rear. These units are finished in a durable powdercoat with chrome handles.

Manual Lift
Lift Capacity: 400kg
Maximum Lift Height: 1500mm
Minimum Lift Height: 200mm
Fork Dimensions: 650(l) x 550(w) x 50(h)
Adjustable Width Forks: Min 220mm Max 550mm
Overall Dimensions: 1040(l) x 590(w) x 1710(h)
Weight: 85 Kg
Distance Between Straddle Legs: 370mm
Platform dimensions: 590 x 650mm

Specifications

Product Code 5781046
Product Name Logistec Hydraulic Lift Tables
Fork Length (mm) 660
Fork Width (mm) 560
Lift Height (mm) 1500
Load Capacity (kg) 400
Low Height (mm) 80
Operation Manual Foot Pump

Specifications

Product Code 5781046
Product Name Logistec Hydraulic Lift Tables
Fork Length (mm) 660
Fork Width (mm) 560
Lift Height (mm) 1500
Load Capacity (kg) 400
Low Height (mm) 80
Operation Manual Foot Pump
